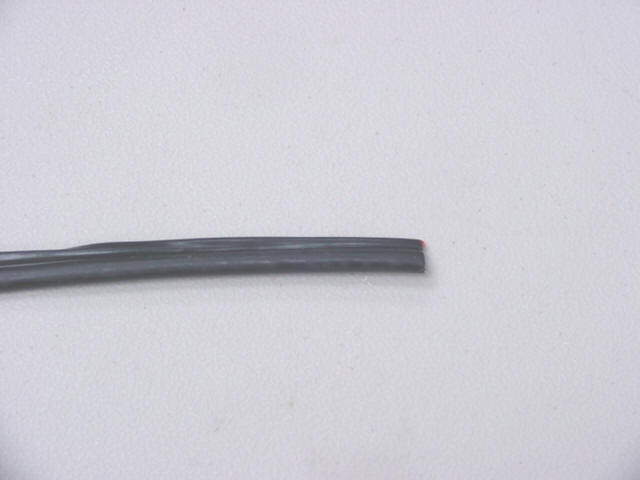

Step 1

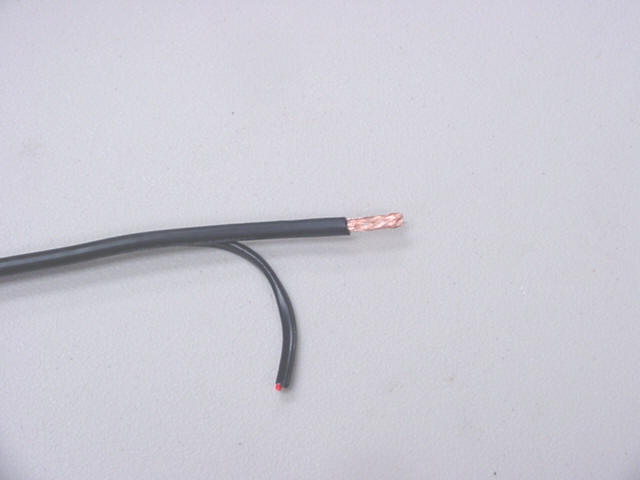

Step 2
Strip 1/2" to 3/4"
of the coax shield off
So the bear Copper braid is exposed.
Be careful not to cut off to much of the brad

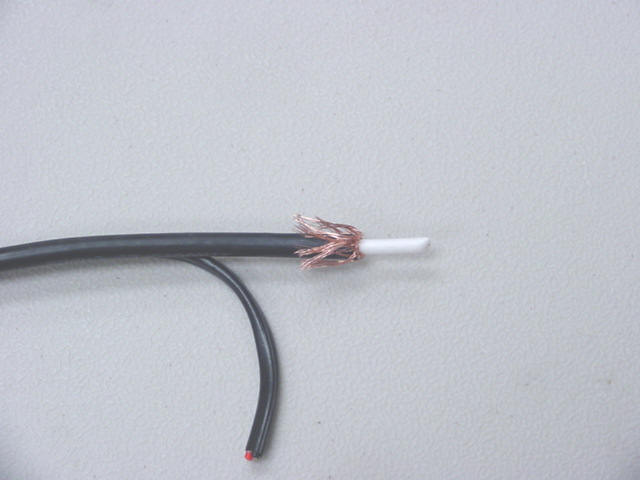

Step 3
Fold the copper brad back
This should expose about a 1/2"
of the white Insulator

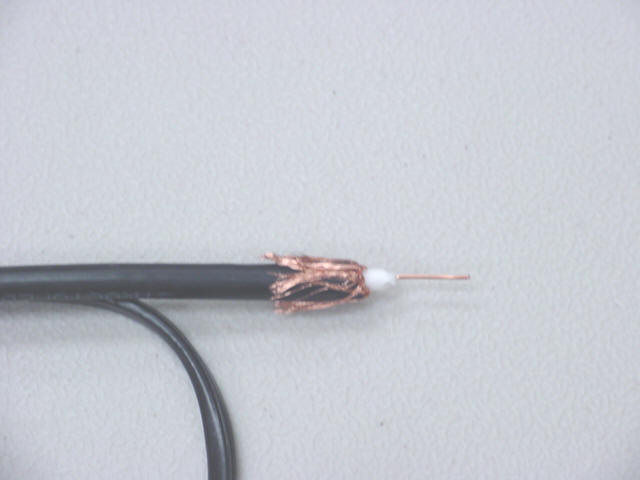

Step 4
Strip part of the white insulator off leaving
about 1/4" of the white insulator

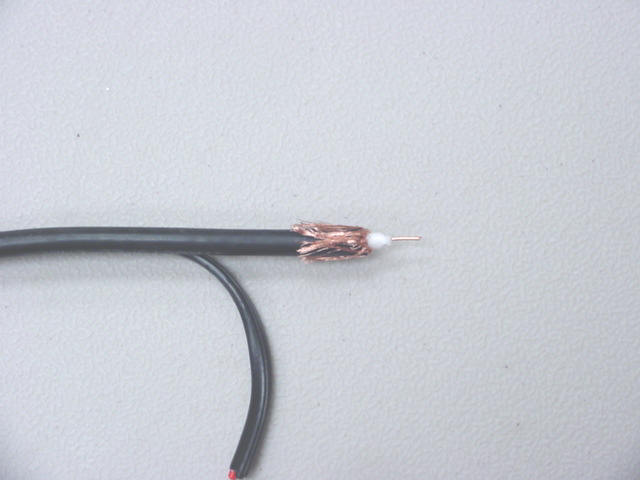

Step 5
Cut the center conductor down
so only about 1/4" the conductor is sticking
out past the insulator by about 1/4"

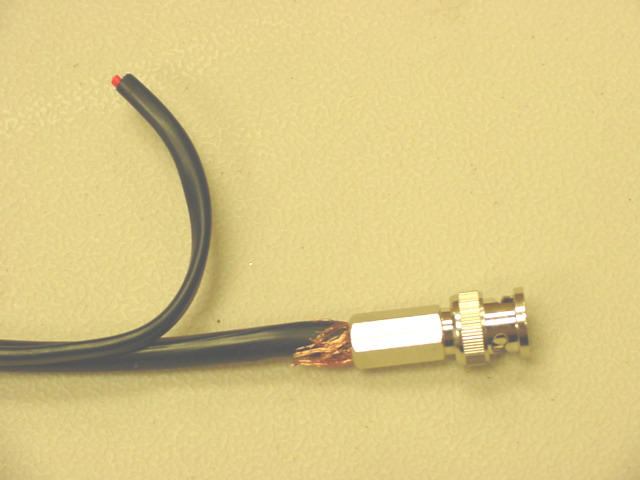

Step 6
Screw the CT 114 Male BNC
Twist on connector
on to the coax cable over the copper brad until tight
