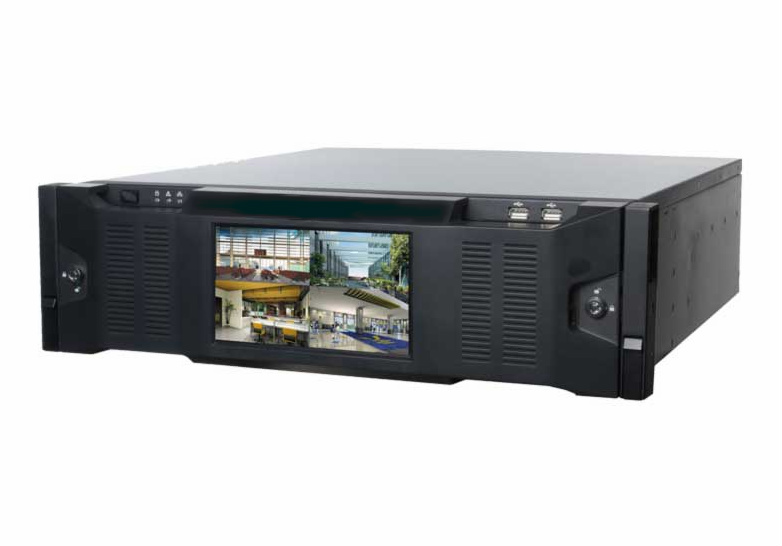

128 Channel Intel Core i5 Processor Super NVR

128 Channel Intel Core i5 Processor Super NVR


SCW-NVR128IP
$6,359.50

Product Details


  • The system enable simultaneous recording and remote access to live images across the full range of 128 cameras. Scheduled and triggered recordings can be performed at a resolution of D1 with 128 cameras recording. Designed to deliver stability and reliable operation performance, this NVR's provide 'fall-back' fault-tolerance by employing occupancy space for 16 internal SATAII hard drives.
  • Intelligent system diagnostics provide immediate incident details which are logged and reported in a user friendly format in order to ensure maximize 'up time' in system performance for the end user.
  • All of our NVRs are capable of being rack or desk-mounted and require no additional hardware for immediate operation on installation. The NVR's can be located at any point on a network permitting recording and playback across multiple sites regardless of location.
  • Up to 128 channel @ D1, 64 channel @ 720P, 32 channel @ 1080P realtime recording
  • Max 128ch IP cameras connection
  • Up to 32 channel HD realtime transmission
  • Video Outputs: 1 Primary VGA (64 camera view), 1 Primary HDMI (64 camera view), 5 Secondary HDMI (single or quad view)
  • Support 16 hot-swap SATA HDDs to better its scalability and flexibility
  • Support RAID0/1/5(optional)
  • ONVIF Version 2.0 conformance
  • Front LCD display
  • Support Multi-brand network cameras such as: Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG, SANYO, SONY and ONVIF


Specifications



SCW-NVR128IP
Interface
Local GUI &WEB GUI
Main Processor
Intel® Core™ i5 Processors
Operating System
Embedded LINUX
Motherboard
Embedded Board (Support 7x24 operation)
Memory
4GB DDR3
Case
Hot-dipped galvanized sheet steel(1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design
Fan
Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation

 Video & Audio
Input
128ch@D1/64ch@720P/32ch@1080P
Transmission
128ch@D1/64ch@720P/32ch@1080P
Recording
128ch@D1/64ch@720P/32ch@1080P
Preview
5ch@1080P/10ch@720P/20ch@D1(Screen 1~2 ) +12ch@1080P/24ch@720P/48ch@D1(Screen 3~6) (Optional)
Playback
4ch@1080P/8ch@720P/16ch@D1 (Screen 1)
Recording Resolution
8M, 5M, 3M, 1080P, 720P, 960H, D1, CIF, QCIF, VGA
Audio
1ch audio & 1ch Mic in, 1ch audio out

Recording
Recording Mode
Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
Alarm Recording
Video loss, Camera blank, Motion detection, External alarm
Backup Mode
Network download / USB HDD/USB CD&DVD-RW / eSATA Device

 Display
Interface
Video Outputs: 1 Primary VGA (64 camera view), 1 Primary HDMI (64 camera view), 5 Secondary HDMI (single or quad view)
Video Output
Video Outputs: 1 Primary VGA (64 camera view), 1 Primary HDMI (64 camera view), 5 Secondary HDMI (single or quad view) (or built-in LCD)
Multi-screen Display
The 1st screen: 1/4/6/8/9/16/32/64 The 2nd-6th screens: 4
Privacy Masking
Four customized zones for privacy masking for each area

 Hard Drive
Hard Disk
16 SATAII
HDD Mode
Single, Raid 0, Raid 1, Raid 5. (Support global HDD Hot-standby) (Optional)
HDD Installation
Independent HDD rack, support hot swap

 Network
Interface
4 RJ-45 ports(10/100/1000M)
Ethernet Port
4 Ethernet ports joint working or 4 independent 1000M Ethernet ports

 MD & Alarm
Motion Detection
Zones: 396(22x18), Sensitivity: 1~6 (level 6 is highest)
Alarm Input
16ch, low level effective, green terminal interface
Relay Output
8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface

Interface
Front cover
Support hot swap, 7" inch HD LCD (1920 x 1080 / 1280 x 1024 / 1024 x 768) (Model –D only)
USB
4 USB ports(2 on the front-panel, 2 on the rear panel)
eSATA
1 eSATA (Video Backup)
Supported IPCs
Click for PDF file

 General
Power Supply
100V-240Vac, 47-63Hz
Power Consumption
＜240W（Include HDD）
Working Environment
-10ËšC~55ËšC
Working Humidity
10%~80% ( non-condensation)
Dimension
19.09"x17.63"x5.24" (WxDxH)

485mmx448mmx133.2mm (WxDxH)
Weight
77.16lb or 35Kg
Installation
Rack-mounted
