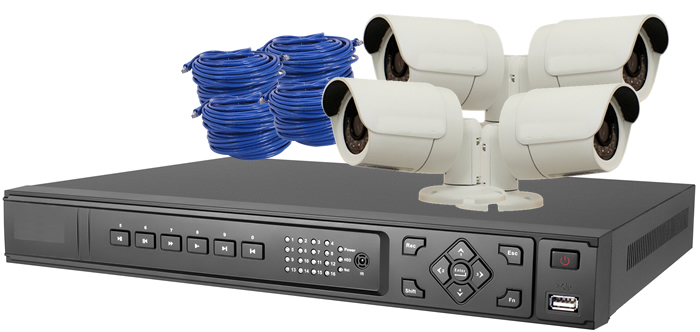

Cassowary 04 included 4-SCW-IP-72 + 4-100 Ethere net cables

Cassowary 04 included 4-SCW-IP-72 + 4-100 Ethere net cables


SCW-CASSOWAY-O4-KIT
$1,177.85

Product Details


  • Up to 4 channel with 1080p realtime live view
  • H.264/MJPEG dual codec decoding
  • Max 120fps @ 1080p, 240fps @ 720p, 480fps @ D1 preview & recording
  • All channel simultaneous realtime playback, GRID interface & smart search
  • Support Multi-brand network cameras: ClearView, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
  • ONVIF Version 2.0 conformance
  • 3D intelligent positioning with ClearView PTZ camera
  • Support 2 SATA HDDs up to 8TB, 1 eSATA up to 16TB, 3 USB2.0
  • Support IPC UPnP, 4 PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Includes 4 SCW-IP72 Cameras and 4 100ft Ethernet cables


Specifications





Camera
Image Sensor 1/3" 1.3Megapixel Aptina CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/4~1/10000s
Min. Illumination Color: 0. 1LUX/F1.2, B/W: 0.005LUX/F1.2; 0LUX/F1.2(IR on)
S/N Ratio >50dB
Camera Features
Max. IR LEDs Length 65ft IR Range
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 2D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm
Max Aperture F1.8
Angle of View H: 46°(70°/35°)
Mount Type Board-in Type
Video
Compression H.264 / MJPEG
Resolution 1.3M(1280 x 960) /  720P(1280 x 720) / D1(704 x 480) / CIF(352 x 240)
Frame Rate Main Stream 1.3M(1~15fps)/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF ONVIF Ver. 2.0
Max. User Access 10 users
Smart Phone iPhone, iPad, Android, Windows Phone
General
Power Supply DC12V, PoE(802.3af)
Power Consumption <6W
Working Environment -10°C~+60°C, 10%~90%
Ingress Protection IP66
Dimensions 64.43mm×145.02mm / 2.53" x 5.70"
Weight 370g / 13.05oz





System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 4 channel
Two-way Talk 1 channel Input, 1 channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920x1080, 1280x1024, 1280x720, 1024x768
Display Split 1/4
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264 / MPEG4
Resolution 1080P(1920x1080) / 720P(1280x720) / D1 (704x576 / 704x480)
Record Rate 400/480fps @ D1, 200/240fps @ 720P , 100/120fps @ 1080P
Bit Rate 48 ~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 3 channel
Relay Output 1 channel
Playback & Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device / eSATA Device / Network
Network
Ethernet RJ-45 port (10/100M/1000M)
PoE 4 ports (IEEE802.3af)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS etc)
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 2 SATA ports, up to 8TB
External HDD 1 eSATA port (Max 4 SATA HDDs), up to 16TB
Auxiliary Interface
USB Interface 3ports (1 Rear), USB2.0
RS232 1 port, For PC communication & Keyboard
RS485 1 port, For PTZ control
General
Power Supply NVR: DC12V
PoE Switch: DC48V
Power Consumption NVR: 20W(without HDD)
PoE Port: Max.15 (each)
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension (W×D×H) 100mm x 220mm x 146mm
Weight 1.6KG(without HDD)
