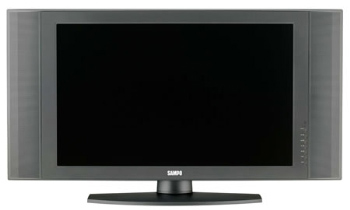

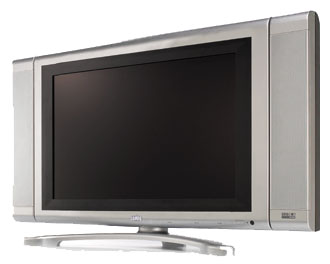

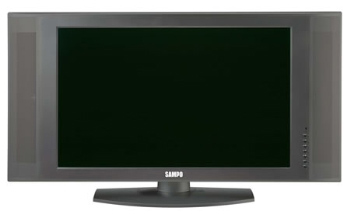

LCD Displays

• Resolution : 2.95 million Pixels (WXGA)
• Brightness : 500 cd/m2
• Contrast : 500:1
• Viewing Angle Degree : H : 170 / V : 170
• 0.5025 mm x 0.5025 mm Pixel Pitch
• Response time(Gray to Gray) : 16 ms
• HDTV Ready:480i / 480p / 1080i / 720p
• VESA VGA, SVGA, XGA Compatible
• Built in 5W x 2 Stereo Speaker
• SRS (WOW) Surrounding Sound
• DVI Input and RS-232 Port
• 3D Motion De-interlacing and 3:2 Pull Down
• 3D Comb Filter
• Photo Frame : JPEG Format (Opt.)
• Hard Coating AR Glass

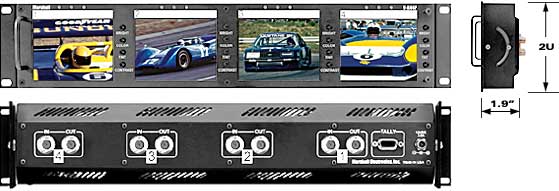

The V-R44P is a rack mountable unit that offers four 4" high-resolution active matrix LCD panels. Each of the four 480 x 234 pixel screens has its own set of controls for color, tint, contrast, and brightness. Each panel has its own input with active loop through feature, a 3 color tally system, and auto-recognition of NTSC or PAL formats. This unit is only 2U high, and can be tilted up to 90 degrees while rack mounted, and is the smallest video monitoring system of its kind. All V-R Series models are constructed of steel and aluminum, and include power supply and owners manual.

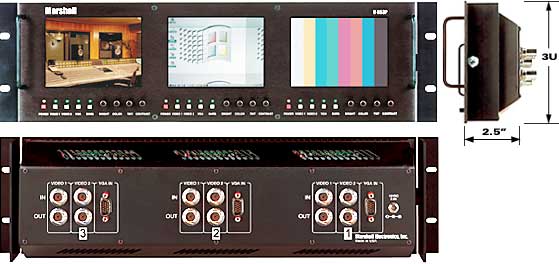

The V-R53P is a rack mounted unit that has three independently controlled 5" active matrix LCD panels with active loop through feature. These 5” panels have 960 x 234 pixels producing a true high resolution image. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19” rack, 3U high. Each of the three screens has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. Each screen has two composite video inputs and outputs, and a VGA input for computer monitoring. The unit includes power supply and is available in either NTSC or PAL format.

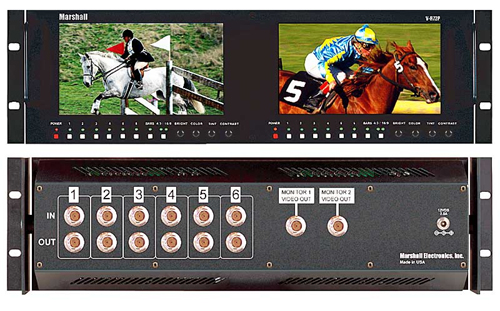

The V-R72P is a rack mountable unit that has two 7” 16:9 active matrix LCD panels with NTSC/PAL auto recognition. These panels have 1440 x 234 pixels producing a true high resolution image. The unit has a 6 x 2 router and sequential switcher with active loop through feature. The two program outputs can route the signal appearing on the screen to any other monitor. Any of the six channels can appear on one or both of the monitors simultaneously. The unit fits into an EIA standard 19” rack, 3U high. Each of the screens can switch between 16:9 and 4:3 aspect ratios and has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. The unit includes power supply and manual.
