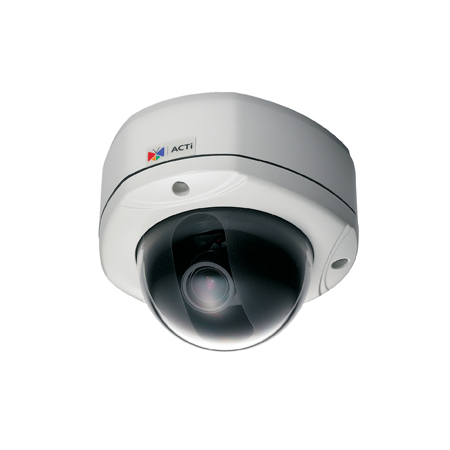

ACTi H.264 Megapixel IP Rugged Dome Camera

ACTi H.264 Megapixel IP Rugged Dome Camera


TCM-7411
$834.31

Product Details


  • 1/3" Micron Progressive Scan CMOS
  • Day and night function with Mechanical IR Cut Filter
  • Integrated f3.3 ~ 12 mm / F1.6 Megapixel varifocal lens
  • 0.05 Lux at F1.0
  • H.264 / MPEG-4 SP / MJPEG triple codec with two simultaneous streams
  • Up to SXGA resolution at 18 FPS
  • Wide Dynamic Range function supported
  • Shutter Speed, White Balance, Exposure, Gain Controls supported
  • Two-way audio supported
  • Hardware motion detection, Digital Input / Output
  • DC 12V or Power over Ethernet (IEEE 802.3af) supported
  • Heavy-duty, weatherproof and vandal proof with IP66 protection
  • Surface / Pendant / Wall / Corner / Pole / Flush mount supported


Specifications

Image Device Micron Progressive Scan CMOS
Size 1/3 inch
Effective Pixels 1280 (H) x 1024(V)
Min. Scene Illumination Color Color mode automatically switched to B/W mode under 4 Lux
B/W 0.05 Lux at F1.0 (2400K, 30 IRE)
CDS Sensor Yes
IR Sensitivity from 700 nm to 1100 nm
Lens Focal Length f3.3 ~ 12 mm / F1.6
Viewing Angle 78.4 ~ 23.1 (Horizontal)
Camera Angle Adjustment X (Panning) 0 ~360
Y (Tilting) 0 ~180
Z (Rotating) 0 ~360
Synchronization Sync. System Internal
Day/Night Functions Mechanical IR Cut Filter Yes
Functions Motion Detection Yes (3 Windows)
Electronic Shutter 1/5 ~ 1/15,000 sec
Fixed Shutter (Manual) 1/30 ~ 1/1,000 sec. (60Hz);
1/25 ~ 1/1,000 sec. (50Hz)
Flickerless 1/120 sec. (60Hz);
1/100 sec. (50Hz)
AGC Automatic (User defined)
White Balance AUTO, INDOOR1, INDOOR2, OUTDOOR1, OUTDOOR2, HOLD CURRENT, MANUAL
Wide Dynamic Range Yes
S/N Ratio S/N Ratio Better than 44 dB
Video Compression Compression H.264 / MPEG-4 SP / MJPEG simultaneous dual streams selectable
Picture Resolution SXGA (1280x1024);
HD720 (1280x720);
VGA (640x480);
QVGA (320 x 240);
QQVGA (160 x 112)
Bit Rate 28K ~ 6M bps
Image Frame Rate 18 fps at SXGA;
26 fps at HD720;
30 fps at VGA;
30 fps at QVGA;
30 fps at QQVGA
Audio Input Compression 8kHz, Mono, PCM
Audio Line Input Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Audio Output Compression 8kHz, Mono, PCM
Audio Line Output Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Alarm Digital Input 1, TTL, terminal block
Digital Output 1, TTL, terminal block
External I/O Reset Button Factory default
LED System status
Casing IP66 Rated Weatherproof casing with IP66 standard
Vandal Proof Durability up to 659.23 KgF
Mount Types Surface / Pendant / Wall / Corner / Pole / Flush
Network Ethernet Port Ethernet (10/100 Base-T), RJ-45 Connector
Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP
Software Web Browser Microsoft Internet Explorer 6.0 or above
SDK ACTi SDK-10000
Security Password protection: configured by the administrator
Operating Heater / Fan Yes (built-in)
Temperature -30C ~ 50C (-22F ~ 122F) for DC 12V;
-5C ~ 50C (7F ~ 122F) for PoE
Power Power Requirement PoE (IEEE802.3af) with Class 3
Power Consumption 4.8 W (DC 12V) w/o Heater & Fan
13.68 W (DC 12V) w/ Heater ON & Fan ON
6.24 W (PoE) w/o Heater & Fan
7.68 W (PoE) w/ Fan ON

Physical

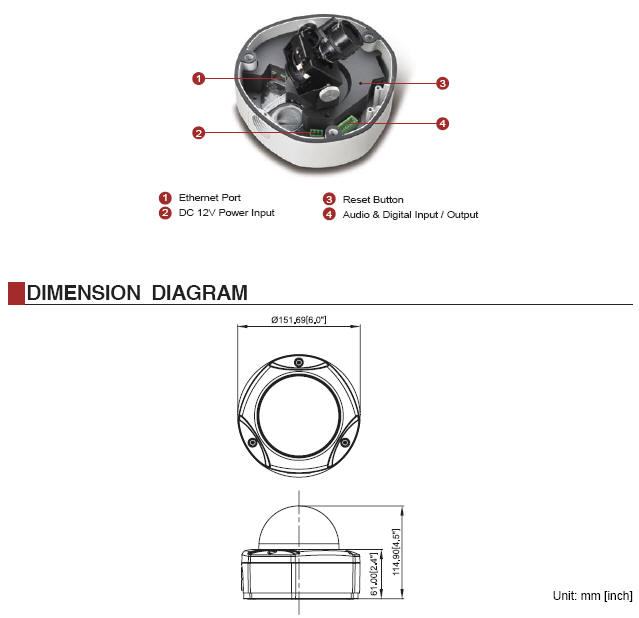

 Dimensions 151.69 mm x 114.9 mm (6.0" x 4.5")

Weight

 1040 g (2.29 lb)

Approvals

Certificate

 CE, FCC, IP66
