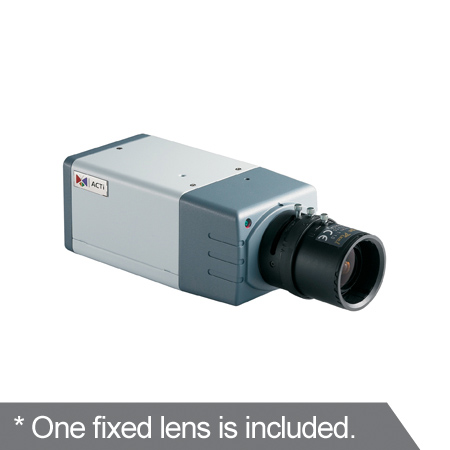

ACTi 1.3 Megapixel H.264 IP Box Security Camera (0.05 Lux @ F1.0)

Accessories:

PMAX-0202 add $55.86

PMAX-1101-000R0 add $22.61

PMAX-1103-000R0 add $23.69

PMAX-0200-000R0 add call for price

PMAX-0201-000R0 add call for price

TCM-5611

$608.21

Product Details

1/3" Micron Progressive Scan CMOS
Day and night function with Mechanical IR Cut Filter
Bundled with f4.2mm / F1.8 Megapixel fixed lens
0.05 Lux at F1.0
Interchangeable Lenses Available
H.264 / MPEG-4 SP / MJPEG triple codec with two simultaneous streams
Up to SXGA resolution at 18 FPS
Wide Dynamic Range function supported
Shutter Speed, White Balance, Exposure, Gain Controls supported
Two-way audio supported
Hardware motion detection, Digital Input / Output
DC 12V or Power over Ethernet (IEEE 802.3af) supported

Specifications

Image	Device		Micron Progressive Scan CMOS
	Size	1/3 inch
	Effective Pixels	1280 (H) x 1024(V)
Min. scene Illumination	Color		Color mode automatically switched to B/W mode under 4 Lux
	B/W	0.05 Lux at F1.0 (2400 ºK, 30 IRE)
	CDS Sensor	Yes
	IR Sensitivity	from 700 nm to 1100 nm
Lens	Lens Mount		C /CS (with adaptor)
	Focal Length	f4.2 mm / F1.8
	Viewing Angle	64.4 (Horizontal)
Synchronization	Sync. System		Internal
Day/Night Functions	Mechanical IR Cut Filter		Yes
Functions	Motion Detection		Yes (3 Windows)
	Electronic Shutter	1/5 ~ 1/15,000 sec
	Fixed Shutter (Manual)	1/30 ~ 1/1,000 sec. (60Hz) 1/25 ~ 1/1,000 sec. (50Hz)
	Flickerless	1/120 sec. (60Hz); 1/100 sec. (50Hz)
	AGC	Automatic (User defined)
	White Balance	AUTO, INDOOR1, INDOOR2, OUTDOOR1, OUTDOOR2, HOLD CURRENT, MANUAL
	Auto Iris Control	DC Iris
	Wide Dynamic Range	Yes
S/N Ratio	S/N Ratio		Better than 44 dB
Video Compression	Compression		H.264/ MPEG-4 SP/ MJPEG simultaneous dual streams selectable
	Picture Resolution	SXGA (1280x1024) HD720 (1280x720) VGA (640x480) QVGA (320 x 240) QQVGA (160 x 112)
	Bit Rate	28 K ~ 6 M bps
	Image Frame Rate	18 fps at SXGA 26 fps at HD720 30 fps at VGA 30 fps at QVGA 30 fps at QQVGA
Audio Input	Compression		8 kHz, Mono, PCM
	Audio Line Input	Unbalanced, 1.4Vp-p, 1Vrms, 3.5 mm Phone Jack
Audio Output	Compression		8 kHz, Mono, PCM
	Audio Line Output	Unbalanced, 1.4Vp-p, 1Vrms, 3.5 mm Phone Jack
Alarm	Digital Input		1, TTL, terminal block
	Digital Output	1, TTL, terminal block
External I/O	Reset Button		Factory default
	LED	System status
Network	Ethernet Port		Ethernet(10/100Base-T), RJ-45 connector
	Protocol	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP
Software	Web Browser		Microsoft Internet Explorer 6.0 or above
	SDK	ACTi SDK-10000
	Security	Password protection: configured by the administrator
Operating	Temperature		0C ~ 50C (32F ~ 122F)
Power	Power Requirement		PoE (IEEE802.3af) with Class 3
	Power Consumption	5.16 W (DC 12 V) 6.24 W (PoE)

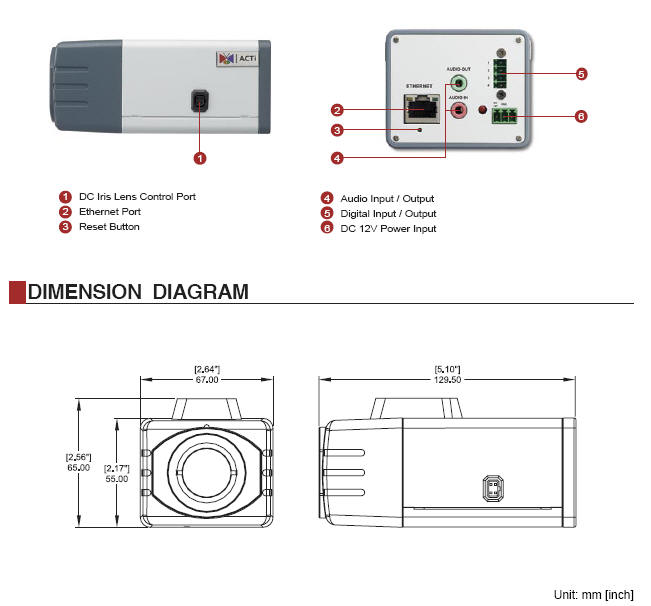

Physical	Dimensions (WxHxL)		67 mm x 55 mm x 129.5 mm (2.64" x 2.17" x 5.10")
	Weight	400 g (0.88 lb)
Approvals	Certificate		CE, FCC
