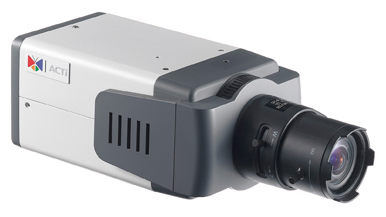

ACTi 1.2 Megapixel H.264 CCD IP Box Security Camera

ACTi 1.2 Megapixel H.264 CCD IP Box Security Camera

Accessories:
MegaPixel Lens, C Mount, f8~80mm, 1/3", Auto IRIS
PLEN-0205 add $474.81

MegaPixel Lens, CS Mount, f2.8~12mm, 1/3", Auto IRIS
PLEN-0203 add $181.96


PMAX-1101-000R0 add $22.61


PMAX-1100-000R0 add $19.88



TCM-5311
$1,033.28

Product Details


  • DC 12V or Power Over Ethernet (IEEE 802.3af) supported
  • 1/3" Sony 1.25 M EXviewHAD CCD
  • Day and night function with Mechanical IR Cut Filter
  • 0.05 Lux at F1.2
  • Interchangeable Lenses Available
  • White Balance, Exposure, Gain Controls supported
  • The external back focus feature allows for easy and precise focus adjustments
  • H.264 / MPEG-4 / MJPEG triple codec with two simultaneous streams
  • Up to 1280 x 960 resolution at 15 FPS
  • Two-way audio supported
  • Hardware motion detection, Digital Input / Output
  • The lens needs to be purchased separately.


Specifications

Image Device Sony Progressive Scan 1.25 Mega Pixel Exview HAD CCD
Size 1/3"
Effective Pixels 1296h x 966v
Horizontal Resolution 900 TV Lines
Min. scene Illumination Color Color mode automatically switched to B/W mode (user defined)
B/W 0.05 Lux at F1.2 (30 IRE, SAGC)
IR Sensitivity from 700nm to 1100nm
CDS Sensor n/a
Lens Lens Mount c/cs with adaptor
Synchronization Sync. System Internal
Day/Night functions Mechanical IR Cut Filter Yes
Functions Motion Detection Yes 3 windows
Electronic Shutter 2~1/500 up to 1/100,000 sec
Fixed Shutter Manual 1/60 ~ 1/10,000 sec (60Hz)
1/50 ~ 1/10,000 sec (50Hz)
Flikerless Auto On/Off
BLC Auto On/Off
AGC Super AGC 0~36 dB
Auto Iris Control DC Iris
White Balance Auto, Indoor1, Indoor2, Outdoor1, Hold Current, Manual
S/N Ratio S/N Ratio Better than 50 dB
Video Compression Compression H.264/MPEG-4 SP / MJPEG simultaneous dual streams selectable
Picture Resolution SXGA (1280x960)
HD 720 (1280x720)
VGA (640x480)
QVGA (320x240)
QQVGA (160x112)
Bit Rate 28K ~ 6M bps
Image Frame Rate 15 fps at SXGA; 30 fps at HD720; 30 fps at VGA; 30 fps at QVGA; 30 fps at QQVGA
Audio Input Compression 8kHz, Mono, PCM
Audio Line Input Unbalanced, 1.4Vp-p, 1Vrms, 3.5mm Phone Jack
Audio Output Compression 8kHz, Mono, PCM
Audio Line Output Unbalanced, 1.4Vp-p, 1Vrms, 3.5mm Phone Jack
Alarm Digital Input 1, TTL, Terminal Block
Digital Output 1, TTL, Terminal Block
External I/O Reset Button Factory Default
LED System Status
Network Ethernet Ethernet(10/100 Base-T), RJ-45 connector
Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, IPv6
Software Web Browser Microsoft Internet Explorer 6.0 or above
SDK ACTi SDK-10000
Security Password Protection: Configured by the Administrator
Operating Temperature -10C ~ 50C (14F ~ 122F )
Power Power Requirements PoE (IEEE 802.3af) with Class 3
Power Consumption
6.72 W (DC 12 V)
7.68 W (Poe)
Physical Dimensions 5.34" x 3.25" x 2.4"
Weight 1.1 lbs
Approvals Certificate CE, FCC

Drivers & Manuals

Photos & Videos

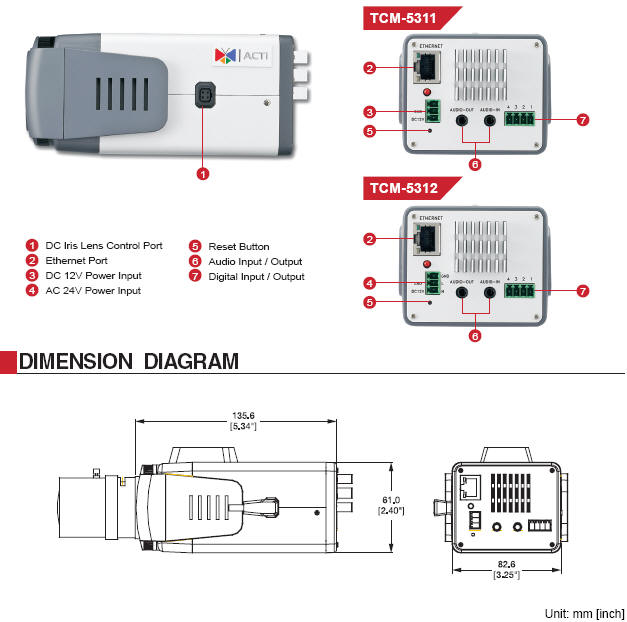

ACTi 1.2 Megapixel H.264 CCD IP Box Security Camera TESTTCM-5311-diagram.jpg

Accessories

  • ACTi 1.2 Megapixel H.264 CCD IP Box Security Camera
  • PLEN-0205
  • $474.81
  • MegaPixel Lens, C Mount, f8~80mm, 1/3", Auto IRIS
  • ACTi 1.2 Megapixel H.264 CCD IP Box Security Camera
  • PLEN-0203
  • $181.96
  • MegaPixel Lens, CS Mount, f2.8~12mm, 1/3", Auto IRIS
