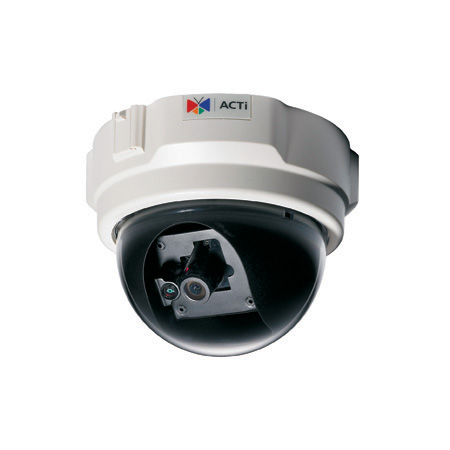

ACTi H.264 IP Fixed Dome Camera

ACTi H.264 IP Fixed Dome Camera


TCM-3001
$382.11

Product Details


  • 1/3" Micron Progressive Scan CMOS
  • Integrated f4.2mm / F1.8 fixed lens
  • 0.5 Lux at F1.0
  • Interchangeable Lenses Available
  • H.264 / MPEG-4 SP / MJPEG triple codec with two simultaneous streams
  • VGA resolution at 30 FPS
  • Wide Dynamic Range function supported
  • Shutter Speed, White Balance, Exposure, Gain Controls supported
  • Two-way audio supported
  • Hardware motion detection, Digital Input / Output
  • DC 12V or Power over Ethernet (IEEE 802.3af) supported
  • Surface / Pendant / Wall / Corner / Pole / Flush mount supported


Specifications



Image Device Micron Progressive Scan CMOS
Size 1/3 inch
Effective Pixels 640 (H) x 480(V)
Min. Scene Illumination Color 0.5 Lux at F1.0 (2400K, 30IRE)

B/W

 N/A

IR Sensitivity

 N/A

CDS Sensor

 N/A
Lens

Focal Length

 f4.2 mm / F1.8

Viewing Angle

 64.7 (Horizontal)
Camera Angle Adjustment

X (Panning)

 0 ~170
Y (Tilting) 0 ~180
Synchronization Sync. System Internal
Day/Night Functions Mechanical IR Cut Filter N/A
Functions Motion Detection Yes (3 Windows)
Electronic Shutter 1/5 ~ 1/15,000 sec
Fixed Shutter (Manual) 1/30 ~ 1/1,000 sec. (60Hz);
1/25 ~ 1/1,000 sec. (50Hz)
Flickerless 1/120 sec. (60Hz);
1/100 sec. (50Hz)
AGC Automatic (User defined)
White Balance AUTO, INDOOR1, INDOOR2, OUTDOOR1, OUTDOOR2, HOLD CURRENT, MANUAL
Wide Dynamic Range Yes
S/N Ratio S/N Ratio Better than 44 dB
Video Compression Compression H.264/ MPEG-4 SP/ MJPEG simultaneous dual streams selectable
Picture Resolution VGA (640x480); QVGA (320 x 240); QQVGA (160 x112)
Bit Rate 28K ~ 6M bps
Image Frame Rate 30 fps at VGA resolution
Audio Input Compression 8kHz, Mono, PCM
Audio Line Input Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Audio Output Compression 8kHz, Mono, PCM
Audio Line Output Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Alarm Digital Input 1, TTL, terminal block
Digital Output 1, TTL, terminal block
External I/O Reset Button Factory default
LED System status
Casing Mount Types Surface / Pendant / Wall / Corner / Pole / Flush
Network Ethernet Port Ethernet (10/100 Base-T), RJ-45 connector
Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP
Software Web Browser Microsoft Internet Explorer 6.0 or above
SDK ACTi SDK-10000
Security Password protection: configured by the administrator
Operating Temperature -10C ~ 50C (14F ~ 122F)
Power Power Requirement PoE (IEEE802.3af) with Class 3
Power Consumption 4.8 W (DC 12 V);
6.72 W (PoE)

Physical

 Dimensions (ØxH) 130 mm x 99 mm (5.12" x 3.90")

Weight

 350 g (0.7 lb)

Approvals

Certificate

 CE, FCC

Drivers & Manuals

Photos & Videos

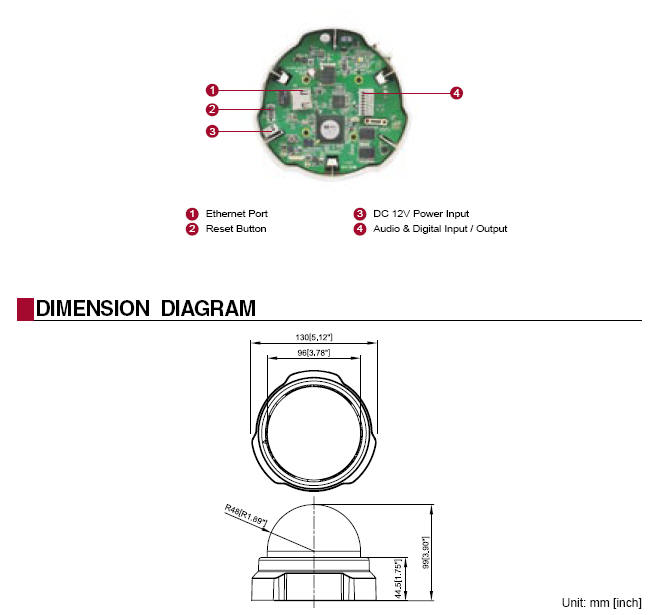

ACTi H.264 IP Fixed Dome Camera TESTTCM-3001-diagram.jpg
