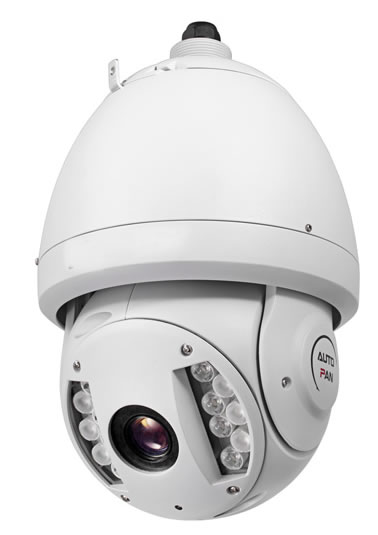

2 Megapixel Full HD 20x Optical Network PTZ Camera IP66 Weatherproof 300ft IR

2 Megapixel Full HD 20x Optical Network PTZ Camera IP66 Weatherproof 300ft IR


Product Details

  • 1/2.8" 2 Megapixel progressive scan Exmor CMOS
  • Powerful 20x optical zoom and 18x digital zoom
  • H.264 & Dual-stream video encoding and JPEG image capture
  • Max 30fps @1080P resolution
  • Day/Night(ICR), Auto iris, Auto focus, AWB, BLC
  • Up to 24 privacy masking areas
  • Built-in Web server, NVR, CMS(PSS/DSS) & ICRSS
  • Max 240°/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor
  • Up to 255 preset, 5 auto scan, 8 tour, 5 pattern
  • Auto recognition of general protocols such as ICR-SD, Pelco-P/D, and etc
  • Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate
  • Auto restore to previous PTZ and lens status after power failure
  • Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time
  • Idle Motion: Call preset/tour and etc operations after idle for the specified time
  • Build-in 7/2 channel alarm input/output
  • Intelligent 3D positioning function
  • IP66 all-environments protection, 4000V thunder-proof
  • Easy installation with user-friendly designs IR LED
  • Up-to 300 feet IR


Image Sensor 1/2.8” progressive scan Exmor CMOS
Effective Pixels 2 Megapixels
Lens 20x optical zoom
f=4.7mm(Wide)~94.0mm(Tele), F1.6~F3.5
Digital Zoom 16x
Horizontal Viewing Angle 55.4°(wide) ~ 2.90°(tele)
Min. Object Distance 10mm(wide) ~ 1000mm(Tele)
Min. Illumination 1.8Lux/F1.6(color); 0.02Lux/F1.6(B/W)
Electronic Shutter 1/1 to 1/30,000s
White Balance AWB(3200to7500K);ATB(2000to10000K);Indoor(3200K); Outdoor(5800K);Manual
Day/Night Auto(ICR) / Color / B/W
S/N Ratio More than 50 dB
Privacy Masking ON/OFF (up to 24 privacy masking areas)
Analog Video Output BNC(1.0Vp-p / 75Ω), PAL / NTSC
Video & Audio
Video Compression H.264E / MPEG4
Image Resolution 1080P(1920x1080) / 720P(1280x720) / D1(704x576/704x480)
Encoding Speed Main Stream: NTSC: 1080P/720P(1~30fps)
Extra Stream: NTSC: D1(1~30fps
Bit Rate 32K~8Mbps
Audio Compression G.711a(32Kbps) / AMR(10.2Kbps)
Audio Mode Off/Audio input/Audio output
Dome Drive
Pan/Tilt Range Horizontal: 0°~360° endless, Vertical: -2°~90° auto flip 180° to continue monitor
Manual Control Speed Horizontal: 0.1° ~160°/s, Vertical: 0.1° ~120°/s
Preset Speed Horizontal: 240°/s, Vertical: 200°/s
Preset 255
PTZ Mode 5 Auto Pattern, 8 Auto Tour, 5 auto scan
3D Positioning Yes
Speed Setup Human-oriented focal Length/ speed adaptation
Info Display Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.
Power-up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate preset/scan/tour/ patter if there is no command in the specified period.
Time Task Auto activation of Preset/Scan/Tour/ Pattern by preset-time
Alarm 7/2 alarm input/output, Triggering Preset/Tour/Pattern/Scan/Alarm output
Protocol ICR-SD, Pelco-P/D, Auto recognition of general protocols
IR LED Auto / Near light / Far light / OFF, 6 Near light + 8 Far light, up to 100m
Ethernet RJ-45 (10/100Base-T)
Network Functions HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server
Max Remote Users 20 Users simultaneously
Processor TI DaVinci Series DSP
Operating System Embedded LINUX
Resource Simultaneous remote monitoring, remote operation & local recording
Remote Operation Monitor, PTZ control, Voice Intercom, System setting, Playback, File download, Log information, Maintenance & Upgrade
Local Recording SD/SDHC, Max 64GB
User Interface WEB, CMS(DSS/ PSS), ICRSS, NVR
Power Supply AC 24V/3A (±10%)
Power Consumption 12W / 30W(IR LED ON)
Working Temperature -22°F ~ 140°F / -30°C ~ 60°C
Working Humidity <90%
Protection Level IP66, 4000V thunder, surge and wave protection
Dimension Φ9.05" x 15" /Φ230mm x 381mm
Weight 15.43lb / 7.0 kg
