Product Details

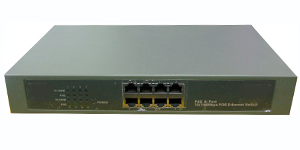

POE-SW800 is a 8-port 10/100Mbps Rackmountable 10/100mbps POE Switch.
-
Support up to 130W of POE Power-Internal Power Supply
-
Setting free and Comply with IEEE 802.3af PoE standard
-
Auto-MDI/MDI-X, Auto-Negotiation
-
Powered Device(PD) Detection
-
Rackmountable- Comewith rackmount holder
-
Safety Protection on Low Power Devices
Specifications
POE-SW800 is a 8-port 10/100Mbps Rackmountable 10/100mbps POE Switch. Per POE port is power supply up to 15.4W. The total POE power budget is 130W.
|
No. OF POE Ports |
8 |
|
Pass Through Data Rates |
10/100 Mbps |
|
Switch Type |
Rackmount |
|
Standard |
IEEE 802.3: 10 BASE-T
IEEE 802.3u: 100 BASE-TX
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3af: Power Over Ethernet
|
|
POE Spec |
Supports up to 15.4 W for each PoE port
PD classification identify
PoE over current protection
PoE circuit sorting protection
PoE power on RJ-45 pin 3,6 for power + / pin 1,2 for power
|
|
MAC Address Table |
4K |
|
Buffer Memory |
1625K bits |
|
Transmission Method |
Store and Forward |
|
Pin Assignment and Polarity |
1/2 (+), 3/6 (–) or 4/5(+),7/8(-) |
|
Output Power Voltage |
48V/DC per Port Output, 52 VDC Maximum |
|
User Port Power |
130 Watts Maximum |
|
Input Power AC Input Voltage |
100 ~ 240 VAC |
|
Requirements AC Input Current |
100-240 VAC (External Power Adapter) |
|
AC Frequency |
50 to 60 Hz |
|
Dimensions |
10.5" x 6.3" x 1.73" (266mm x 160 mm x 44 mm) |
|
Weight |
5.6 lb(1.6 kg) |
|
LED Indicators |
Per Port: Link / Act, PoE
PoE Port: Act/ Status
Per Unit: Power
|
|
Connectors |
RJ-45 |
|
Operating Ambient Temperature |
14F to 113F (-10C to 45C) |
|
Regulatory |
IEEE 802.3ax, RoHS Compliant, CE/FCC, LVD |
|
Safety Approvals |
EN 60950:2006 |
