Specifications

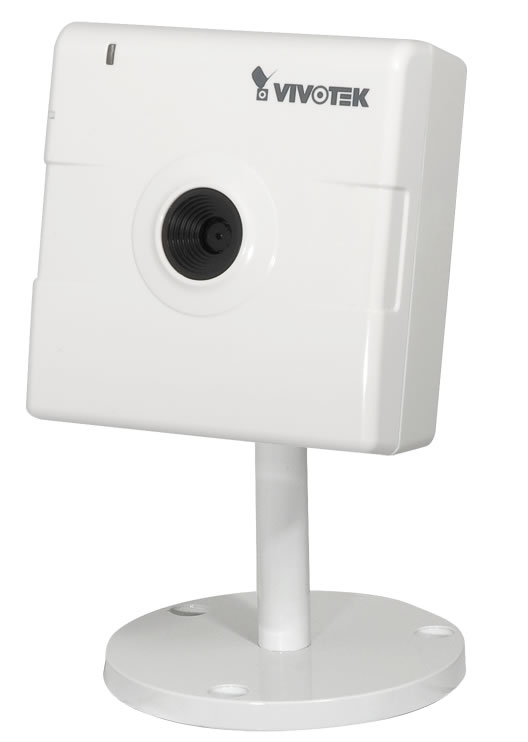

VIVOTEK IP8132 is an easy-to-use network camera specifically designed for home security applications with a compact, stylish exterior. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need look no further for an all-in-one camera capable of capturing high quality, high resolution video.
Embedded with the multimedia SoC, the camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms.
With this network camera, a user can quickly and easily view children, the elderly, or even pets with live, clear videos while away from home. The camera also includes tamper detection and VIVOTEK's 32-channel recording software. With all this and more, the IP8132 is the ideal solution for your surveillance needs.
| System |
CPU: Multimedia SoC |
| Lens |
f=3.45 mm
F 2.4
Board lens
|
| Angle of View |
57.8° (horizontal)
37.8° (vertical)
66° (diagonal)
|
| Shutter Time |
1/15 ~ 1/25,000 sec |
| Image sensor |
1/4" CMOS in 1280x800 Resolution |
| Minimum Illumination |
3.0 Lux @ F2.4 ( typical )
|
| Video |
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1280x800
MPEG-4: Up to 30 fps at 1280x800
MJPEG: Up to 30 fps at 1280x800
|
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGC AWB AES
Supports privacy masks
BLC (Backlight compensation)
|
| Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law
Interface:
Built-in microphone
Supports audio mute
|
| Networking |
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP |
| Alarm and Event Management |
Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
|
| Security |
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
|
| Users |
10 clients on-line monitoring at the same time |
| Dimensions |
Depth: 32mm
Width: 79mm
Height: 80mm
|
| Weight |
Net: 180 g |
| LED Indicator |
System power and status indicator
System activity and network link indicator
Privacy button on
|
| Power |
5V DC
Power consumption: Max. 3.4 W
|
| Approvals |
CE C-Tick FCC LVD VCCI |
| Operating Environments |
Temperature: 0 ~ 40C (32 ~ 104F )
Humidity: 90%
|
| Viewing System Requirements |
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above |
| Installation, Management, and Maintenance |
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
|
| Applications |
SDK available for application development and system integration |
| Warranty |
24 months |
