Specifications

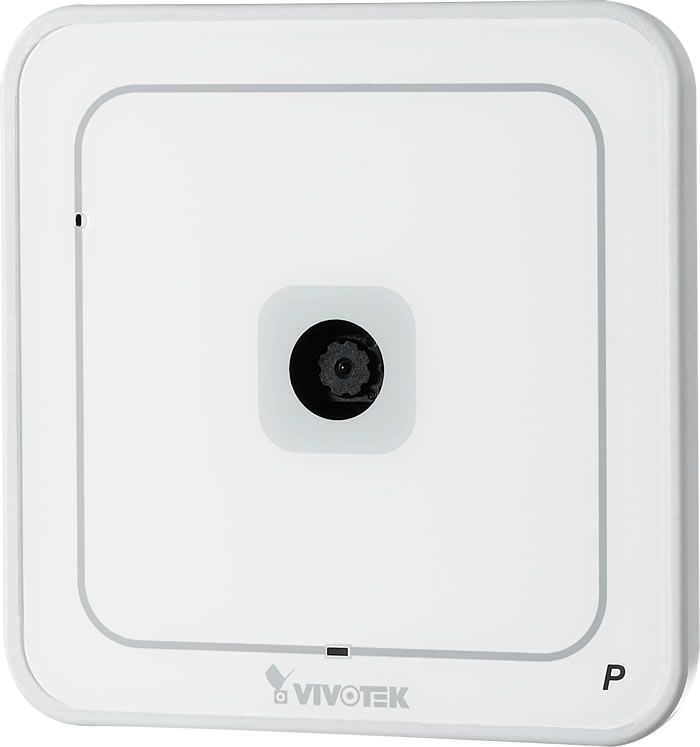

VIVOTEK IP7133 is an easy-to-use network camera designed specifically for home security applications with a compact, stylish exterior. Despite its ultra-compact size, this unit incorporates a number of advanced features to fit your surveillance needs.
Embedded with the VIVOTEK VVTK-1000 SoC, this camera can simultaneously deliver dual streams in MPEG-4 and MJPEG formats with different video resolution and quality for different devices such as PCs or 3G cell phones. With this network camera, you can quickly and easily view the current status of your children, the elderly, or even your pets with live, clear videos while you are away from home.
Additionally, this camera comes with a push button on the front side for privacy, allowing you to manually suspend video monitoring with ease when returning home. With its elegant design and versatile functions, the VIVOTEK IP7133 is the best choice for the fundamental establishment of home security.
| System |
CPU: Multimedia SoC |
| Lens |
f=4.09 mm
F 2.0
Board lens
Fixed
|
| Shutter Time |
1/5 ~ 1/15,000 sec |
| Image sensor |
1/4" in VGA Resolution |
| Minimum Illumination |
0.4 Lux / F2.0 ( typical )
|
| Video |
Compression: MJPEG & MPEG-4
Streaming:
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports 3GPP mobile surveillance
Frame rates:
MPEG-4: Up to 30/25 fps at 640x480
MJPEG: Up to 30/25 fps at 640x480
|
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGC AWB AEC
Supports privacy masks
|
| Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
Interface:
Built-in microphone
Supports audio mute
|
| Networking |
10/100 Mbps Ethernet, RJ-45
Protocols: IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS and PPPoE |
| Alarm and Event Management |
Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
|
| Security |
Multi-level user access with password protection
IP address filtering
Wireless: WEP, WPA-PSK, WPA2
|
| Users |
10 clients on-line monitoring at the same time |
| Dimensions |
Depth: 26.9mm
Width: 86.7mm
Height: 87.6mm
|
| Weight |
Net: 106 g |
| LED Indicator |
System power and status indicator
System activity and network link indicator
|
| Power |
5V DC
Power consumption: Max. 5 W
|
| Approvals |
CE FCC LVD VCCI |
| Operating Environments |
Temperature: 0 ~ 40C (32 ~ 104F)
Humidity: 20% ~ 80%
|
| Viewing System Requirements |
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above |
| Installation, Management, and Maintenance |
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
|
| Applications |
SDK available for application development and system integration |
| Warranty |
24 months |
