2 MegaPixel Bullet Camera

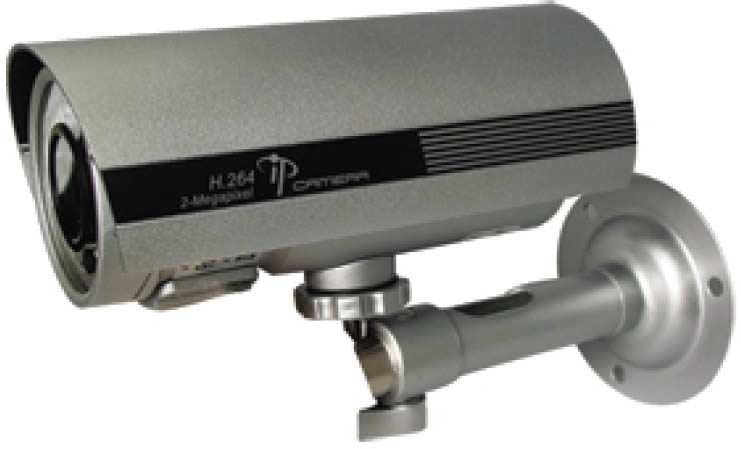

2 MegaPixel Bullet Camera


IP310
$638.35

Product Details


  • High definition 720P @30 FPS
  • Video out available
  • IP66 Rating
  • 2-Megapixel CMOS sensor
  • Power over Ethernet available
  • 20M built-in IR LED available
  • Mechanism IR Cut filter available
  • H.264/ JPEG/ MPEG4 compression
  • SD card backup
  • 2-way audio
  • Support cell phone/PDA/3GPP
  • SDK for software Integration


Specifications

HARDWARE
CPU ARM 9, 32 bit RISC
RAM 256MB
Flash 16MB
Image Sensor 1/3.2" CMOS (2 Megapixels)
Sensitivity 0 lux (IR On)
Support DC IRIS Yes
Lens Type Vari-focal 3.6~16mm Megapixel Lens
ICR Mechanism IR cut Filter
LED Built-in 35 IR LED
IR Distance 20M
I/O 1 in / 1 Relay Out
Video Out 1
Audio In 1
Audio Out 1
Power over Ethernet Optional
Power Consumption DC 12V 500mA
Operating Temperature 0C ~ 40C
Dimensions 83mm x 180mm
NETWORK
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP
SYSTEM
Video Resolution 1600x1200, 1280x1024, 1280x960,1280x720,800x600, 640x480, 320x240, 176x144
Video Adjust Brightness, Contrast, Sharpness, BLC, Night Mode
Triple Streaming Yes
Image Snapshot Yes
Full Screen Monitoring Yes
Privacy Mask Yes, 3 different areas
Compression Format H.264/ JPEG/MPEG4 (3GPP only)
Video Bitrates Adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered Action Mail, FTP, Save to SD card, Relay Pre/ Post Alarm Yes, configurable
Security Password protection
Firmware Upgrade HTTP mode, can be upgraded remotely
Simultaneous Connection Up to 10
Audio Yes, 2-way
