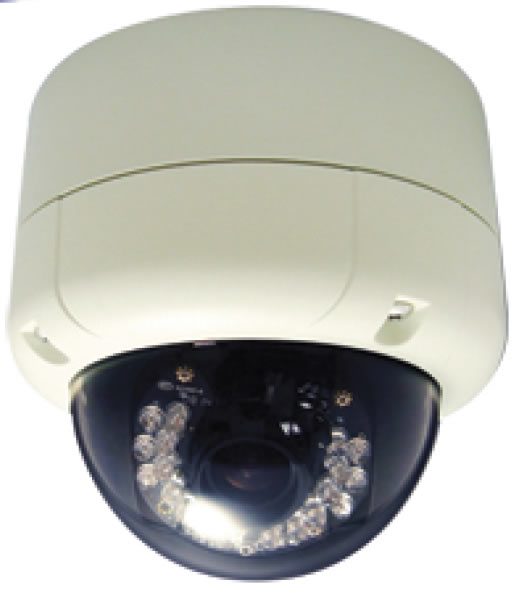

2 Megapixel H.264 MPG4 IP66 POE IR Dome Camera

2 Megapixel H.264 MPG4 IP66 POE IR Dome Camera


IP300
$531.95

Product Details


  • H.264, MPEG4 and MJPEG simultaneously (Tri-encoders)
  • 2-Magapixel CMOS sensor
  • IP66 Vandal-Resistance Housing
  • 45ft built-in IR LED available
  • 802.3af Power over Ethernet
  • Free bundle 36 ch recording software
  • SD card slot for local video or snapshot


Specifications

HARDWARE
CPU ARM 9, 32 bit RISC
RAM 256MB
Flash 16MB
Image Sensor 1/3" CMOS(2 Megapixels)
Sensitivity 0 lux (IR On)
Support DC IRIS Yes
Lens Type 2.7~9mm Vari-focal
ICR Mechanism IR cut Filter (Optional)
LED Built-in 18 IR LED (optional)
IR Distance 15M (Optional)
I/O 1 in/ 1 Relay Out
Video Out 1
Audio In 1
Audio Out 1
Power over Ethernet Optional
Power Consumption DC 12V 470mA
3-Axis Bracket Pan 175 Degrees Tilt 75 Degrees Rotation 180 Degrees Adjustment Angle
Operating Temperature 0C~40C
Dimensions 140mm(ø) x 130mm(H)
NETWORK
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/ IP, UDP, SMTP, FTP, 3GPP, PPPoE, DHCP, DDNS, NTP, UPnP, SD CARD MANAGEMENT
Recording Trigger Motion Detection, IP check, Network break down (wire only), Schedule, Relay
Video Format AVI, JPEG
Video Playback Yes
Delete Files Yes
SYSTEM
Video Resolution 1600x1200, 1280x1024, 1280x960, 1280x720,800x600, 640x480, 320x240, 176x144
Video Adjust Brightness, Contrast, Sharpness, BLC, Night Mode
Triple Streaming Yes
Image Snapshot Yes
Full Screen Monitoring Yes
Privacy Mask Yes, 3 different areas
Compression Format H.264/ JPEG/ MPEG4 (3GPP only)
Video Bitrates Adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered Action Mail, FTP, Save to SD card, Relay
Pre/ Post Alarm Yes, configurable Security Password protection
Firmware Upgrade HTTP mode, can be upgraded remotely
Simultaneous Connection Up to 10
Audio Yes, 2-way
CLIENT SYSTEM REQUIREMENTS
OS Windows 2000, XP, 2003, Microsoft IE 6.0 or above
HARDWARE
Suggested Intel Dual Core 1.66G,RAM: 1024MB, Graphic card: 128MB
Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB
