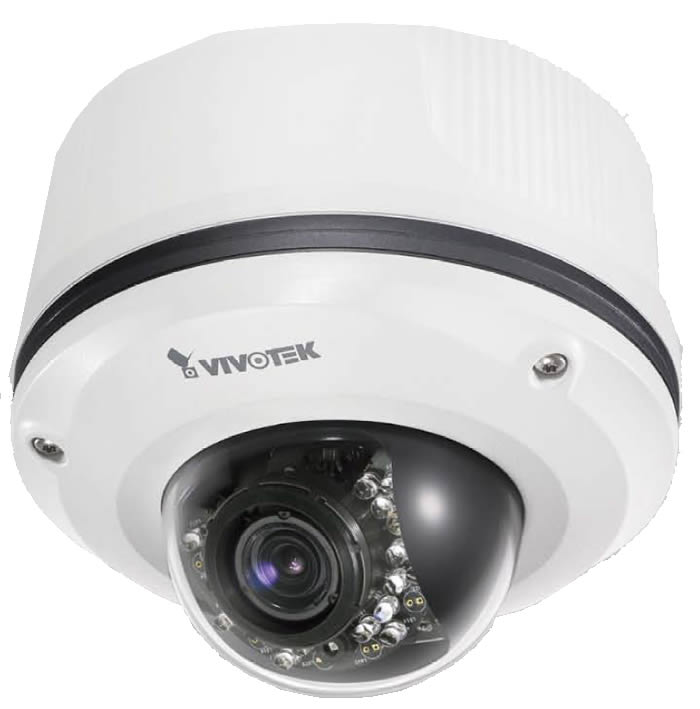

2 MegaPixel H.264 Day & Night Vandal-proof Fixed Dome Network Camera

Configuration Options

FD8361L
Only:

$983.48

Product Details

2-megapixel CMOS Sensor
3 ~ 9 mm Vari-focal, Auto-iris Lens
Removable IR-cut Filter for Day & Night Function
Built-in IR Illuminators, effective up to 20 Meters
Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
Multiple Simultaneous Streams
Video Cropping for Bandwidth Saving
ePTZ for Data Efficiency
Activity Adaptive Streaming for Dynamic Frame Rate Control
Tamper Detection for Unauthorized Changes
Vandal-proof and Weather-proof IP66 rated Housing
Built-in 802.3af Compliant PoE (Class 3)
Built-in SD/SDHC Card Slot for On-board Storage
Built-in Heater and Fan, supported by PoE
3-axis Mechanical Design for Ceiling/Wall Mount Installation
Supports ONVIF Standard to Simplify Integration and Enhance Interoperability

FD8361L Brochure

Specifications
Drivers & Manuals
Photos
Accessories
Comments

Specifications

VIVOTEK's FD8361L is the latest professional-series outdoor fixed dome network camera featuring superb megapixel image quality and exceptional bandwidth efficiency. With day & night functionality and a weatherproof housing, it is especially suitable for tough outdoor surveillance environments such as parking lots and streets.

Featuring a 2-megapixel sensor, the FD8361L is able to provide extremely wide coverage with the finest details. Additionally, the camera is incorporated with high performance H.264 compression technology, and has adopted a number of innovative bandwidth-efficient technologies built into the camera, including cropping, ePTZ, and activity adaptive streaming.

In order to adapt to constantly changing outdoor lighting conditions, the FD8361L features an auto-iris lens to protect from damage induced by direct sunlight. The camera also comes with a removable IR-cut filter and IR illuminators for superior image quality around the clock. For protection against the elements, the camera is furnished with an IP66-rated housing and vandal-proof casing to withstand rain, dust, and vandalism. The PoE-powered heater and fan further enhance the FD8361L's performance and reliability in extremely cold and warm weather.

The integrated BNC connector allowing the FD8361L to be connected directly to an analog monitor provides enhanced flexibility and usability and ease of installation. Other advanced features include a 3-axis mechanism for flexible installation, 802.3af PoE, SD/SDHC card slot, and tamper detection. With the included ST7501 32-CH recording software, the FD8361L is the ultimate camera for demanding outdoor environments.


Networking	10/100 Mbps Ethernet, RJ-45 ONVIF support Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management	Triple-window video motion detection Event notification using HTTP, SMTP, or FTP Local recording of MP4 files Tamper Detection
On-board Storage	SD/SDHC card slot Stores snapshots and video clips
Security	Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission 802.1X port-based authentication for network protection
Users	10 clients on-line monitoring at the same time
Dimensions	170mm x 133 mm Cable length: 690 mm Cable diameter: 10 mm; Max Connector: 18 mm
Weight	Net: 1907 g
LED Indicator	System power and status indicator
Power	24V AC Power consumption: Max. 5.3 W Power consumption: Max. 9.9 W (with heater, fan, and IR illuminator) 802.3af compliant Power-over-Ethernet (Class 3)
Housing	Weather-proof IP66-rated housing
Approvals	CE C-Tick FCC LVD VCCI
Operating Environments	Temperature: -30 ~ 50C (-22 ~ 122F ) Humidity: 20 ~ 95%
Viewing System Requirements	OS: Microsoft Windows 2000/XP/Vista/7 Browser: Mozilla Firefox, Internet Explorer 6.x or above Cell phone: 3GPP player Real Player: 10.5 or above Quick Time: 6.5 or above
Installation, Management, and Maintenance	3-axis mechanism for flexible ceiling and wall mount installation Drop-ceiling mount installation Camera angle adjustment: Pan range: 350 Tilt range: 85 Rotate range: 350 Installation Wizard 2 32-CH central management software Supports firmware upgrade
Applications	SDK available for application development and system integration
Warranty	24 months
System	CPU: Multimedia SoC
Lens	f=3 ~ 9 mm F 1.2 (wide) F 2.1 (tele) auto iris Board lens Vari-focal Removable IR-cut filter for day & night function
Angle of View	31.7 ~ 93.0 (horizontal) 23.8 ~ 68.4 (vertical)
Shutter Time	1/5 ~ 1/40,000 sec
Image sensor	1/3.2" CMOS in 1600x1200 Resolution
Minimum Illumination	0 Lux / F1.2 ( IR LED on )
IR Illuminators	Built-in IR illuminators, Effective up to 20 meter
Video	Compression: H.264, MPEG-4 & MJPEG Streaming: Simultaneous multiple streams H.264 streaming over UDP, TCP, HTTP or HTTPS H.264/MPEG-4 multicast streaming MPEG-4 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS Supports activity adaptive streaming for dynamic frame rate control Supports video cropping for bandwidth efficiency Supports ePTZ for data efficiency Supports 3GPP mobile surveillance Frame rates: H.264: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200 MPEG-4: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200 MJPEG: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200 BNC connector for video output NTSC/PAL video output switch
Image Settings	Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure AGC AWB AES Automatic, manual or scheduled day/night mode Supports privacy masks BLC (Backlight compensation)

Drivers & Manuals

Cameras Manuals & Drivers

IP Camera FD8361L Manual
