Specifications
MPEG-4 compression gives a high resolution image quality

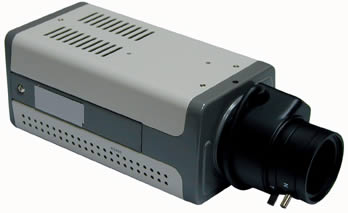

The CAM-5300 series MPEG-4 IP Camera adopts MPEG-4 Advanced Simple Profile (ASP) compliant compression technology to perform full D1 (4 CIF) resolution. It utilizes the premium 1/3" SONY color CCD sensor, and has horizontal resolution of 480 TV lines. The real-time image transmission is 30 fps (720 x 480 pixels, NTSC) and 25 fps (720 x 576 pixels, PAL).
Advanced network technologies enable real-time surveillance
With the LAN and WAN ports built-in, the CAM-5300 series applies QoS (Quality of Service, IEEE 802.1Q) technology to fully utilize the network bandwidth. CAM-5300 series supports automatic (or manual) frame rate control for concurrent video streams accessing at different network bandwidth. With advanced MPEG-4 ASP compliant video compression and QoS-enabled streaming, the CAM-5300 series delivers smooth ananlog-video like transmission over LAN or WAN to reach true remote video surveillance goal. The CAM-5300 series not only supports DDNS, but also has a built-in web server to enable authorized users to do live-viewing and adjust the camera setting via remote web browsers.
Sophisticate Design
In addition to support of the DC and a video auto iris lens, the CAM-5300 series also has DIP-switch controlled functions including backlight compensation, auto white balance, auto gain control and flickerless for different application conditions. With Super Gain Control mechanism, it will switch to color and monochrome picture automatically (CAM-5320).
|
|
CAM-5300
|
CAM-5320
|
|
Image |
Device |
SONY SuperHAD CCD
|
SONY EXviewHAD CCD
|
|
Size |
1/3 inch
|
|
Effective Pixels (HxV) |
811 x 508 (NTSC); 795 x 596 (PAL)
|
|
Horizontal Resolution |
480 TVL
|
|
Min. scene Illumination |
Color |
0.15 Lux at F1.2 (30 IRE, SAGC)
|
Color mode automatically switched to B/W mode under 4 Lux
|
|
B/W |
N/A
|
0.05 Lux at F1.2 (30 IRE, SAGC)
|
|
IR Sensitivity |
N/A
|
from 700nm to 1100nm
|
|
Lens |
Lens Mount |
C / CS (with adaptor)
|
|
Synchronization |
Sync. System |
Internal
|
|
Day/Night Functions |
Mechanical IR Cut Filter |
N/A
|
Yes
|
|
Functions |
Motion Detection |
Yes (3 windows)
|
|
Electronic Shutter |
AES On: 1/60 ~ 1/100,000 sec. (NTSC); AES Off: 1/60 sec. (NTSC); AES On: 1/50 ~ 1/100,000 sec. (PAL); AES Off: 1/50 sec. (PAL)
|
|
BLC |
On / Off (switchable)
|
|
AGC |
On / Off (switchable)
|
On / Off (switchable) Turning off AGC will disable D&N function
|
|
White Balance |
AWB / PWB (switchable)
|
|
Flickerless |
On / Off (switchable)
|
|
Auto Iris Control |
Video / DC (switchable)
|
|
S/N Ratio |
S/N Ratio |
Better than 50 dB (AGC off)
|
|
Video (Compression) |
Compression |
MPEG-4 ASP compliant
|
|
Picture Resolution |
Full D1 (720 x 480 in NTSC, 720 x 576 in PAL); CIF (352 x 240 in NTSC, 352 x 288 in PAL); QCIF (160 x 112 in NTSC, 176 x 144 in PAL)
|
|
Bit Rate |
28 K ~ 3 M bps
|
|
Image Frame Rate |
30 fps at full D1 resolution (NTSC); 25 fps at full D1 resolution (PAL)
|
|
Multi-stream |
Up to 4 configurable frame rate/bit rate streams for preview and recording
|
|
Video Output |
Composite Output |
CVBS, 1.0Vp-p with 75 Ω loading, BNC connector
|
|
Alarm |
Input |
1, TTL, terminal block
|
|
Output |
1, TTL, terminal block
|
|
External I/O |
Reset Button |
Factory default
|
|
LED |
System status
|
|
Network |
LAN Port |
Ethernet(10/100Base-T), RJ-45 connector
|
|
WAN Port |
Ethernet(10/100Base-T), RJ-45 connector
|
|
Protocol |
TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP, FTP, SMTP
|
|
Software |
Web Browser |
Microsoft Internet Explorer 6.0 or above
|
|
SDK |
ActiveX control, C SDK
|
|
Security |
Password Protection : configured by the administrator
|
|
Operating |
Temperature |
5�C~50�C (40�F~122�F)
|
|
Power |
Power Requirement |
DC 12 V �10% (CAM-5300)
PoE (IEEE802.3af) with Class 3 (CAM-5301)
|
DC 12 V �10% (CAM-5320)
PoE (IEEE802.3af) with Class 3 (CAM-5321)
AC 24 V �10% (CAM-5322)
|
|
Power Consumption |
6.84W (DC12V)
7.68W (PoE)
|
6.96W (DC12V)
8.16W (PoE)
7.44W (AC 24 V)
|
|
Physical |
Dimensions (WxHxD) |
63 mm x 52 mm x 120 mm (2.48" x 2.05" x 4.76")
|
|
Weight |
450 g (0.99 lb)
|
