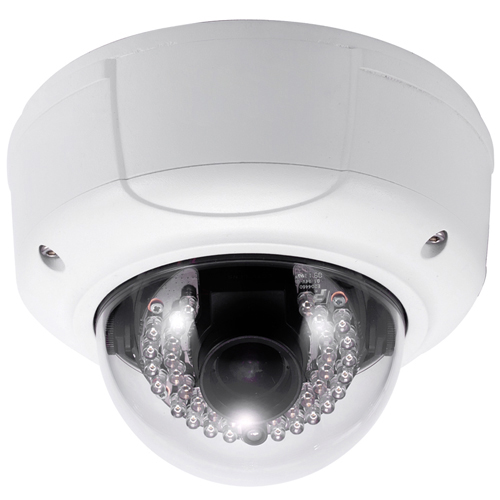

3MP IP DOME

3MP IP DOME CAMERA WITH 65 FT IR RANGE, POE(10 WATTS), ONVIF 2.0+


D-IP-3MP-VF-SX
$594.46

Product Details


-1/3” 3Megapixel progressive scan Aptina CMOS
-H.264 & MJPEG dual-stream encoding
-Max 20fps@3M(2052×1536) & 25/30fps@1080P(1920×1080)
-DWDR, Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
-Multiple network monitoring: Web viewer, CMS
-2.7 ~12mm varifocal lens
-Built-in 1/1 alarm in/out
-Max. IR LEDs length 20m
-Micro SD memory, IP66, IK10, PoE,



Specifications

Image Sensor 1/3” 3Megapixel Aptina CMOS
Effective Pixels 2048(H)x1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3~1/10000
Min. Illumination Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
S/N Ratio More than 50dB
Video Output 1 port
Camera Features
Max. IR LEDs Length 20m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7 -12mm
Max Aperture F1.4
Focus Control Manual
Angle of View H: 82°(Wide)~25°(Tele)
Lens Type Manual /Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264 / MJPEG
Resolution 3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576) /
CIF(352×288)
Frame Rate Main Stream 3M(1~20fps)/1080P/720P(1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps
Audio
Compression G.711a / G.711u/ PCM
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V/AC24V, PoE(802.3af)
Power Consumption Max 5W (Motorized lens: +3.5W)
Working Environment -20°C~+60°C , Less than 90%RH
Ingress Protection IP66
Vandal Resistance IK10
Dimensions Φ151mm×119mm
Weight 1.25kg
