3 Megapixel, 3.3-12mm Vari-focal lens, 1080p @ 30fps

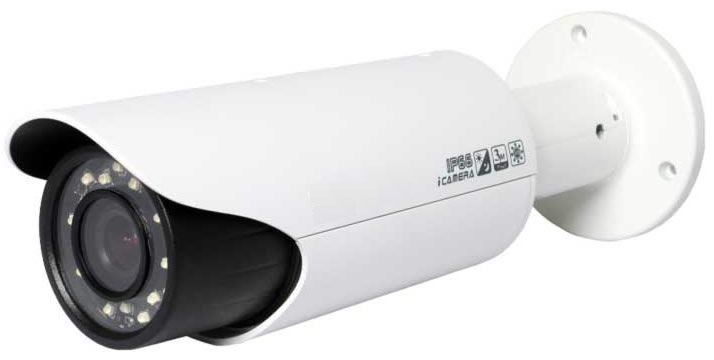

1/3" 3 Megapixel 3.3-12mm VF Full HD Network IR-Bullet Camera


B-IP-3MP-VF-SX
$646.31

Product Details


  • 1/2.8" 3 Megapixel progressive scan Exmor CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 20fps@3.0M(2048x1536)&25/30fps@1080P(1920x1080)
  • DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, PSS & ICRSS
  • 3.3~12mm varifocal lens
  • Built-in 2/1 alarm in/out
  • Max. IR LEDs length 60ft
  • Micro SD memory, IP66, PoE


Specifications

Camera

Image Sensor
1/2.8” 3Megapixel Exmor CMOS
Effective Pixels
2096(H)x1561(V)
Scanning System
Progressive

Electronic Shutter Speed
Min. Illumination
Color: 0. 2Lux/F1.4, B/W: 0.01Lux/F1.4; 0Lux/F1.2(IR on)
S/N Ratio
>50dB
Video Output
1 channel, BNC(1.0Vp-p, 75Ω)

Camera Features
Max. IR LEDs Length
20m
Day/Night
Auto(ICR)/Color/B/W
Backlight Compensation
BLC / HLC / DWDR
White Balance
Auto
Gain Control
Auto/Manual
Noise Reduction
2D
Privacy Masking
Up to 4 areas

 Lens
Focal Length
3.3~12mm
Max Aperture
F1.4
Focus Control
Manual
Angle of View
H: 79.3°(Wide)~29.8°(Tele)
Lens Type
Manual / Auto Iris (DC)
Mount Type
Board-in Type

 Video
Compression
H.264 / MJPEG

Resolution
Frame Rate
Main Stream: 3M(1~20fps)/1080P/720P(1 ~ 25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate
H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 24576Kbps

 Audio
Compression
G.711a / G.711u(64kbps) / PCM(128kbps)
Interface
1/1 channel In/Out

 Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF
ONVIF Ver. 2.0
Max. User Access
10 users
Smart Phone
iPhone, iPad, Android, Windows Phone

 Auxiliary Interface
Memory Slot
Micro SD, Max 32GB
Alarm
2/1 channel In/Out

 General
Power Supply
DC12V(AC24 optional), PoE(802.3af)
Power Consumption
<10W
Working Environment
-14F~140F / -25C~+60C, 10%~90%
Ingress Protection
IP66
Dimensions
4.09" x 12.07"

104mm x 306.7mm
Weight
2.75lb, 1.25Kg
