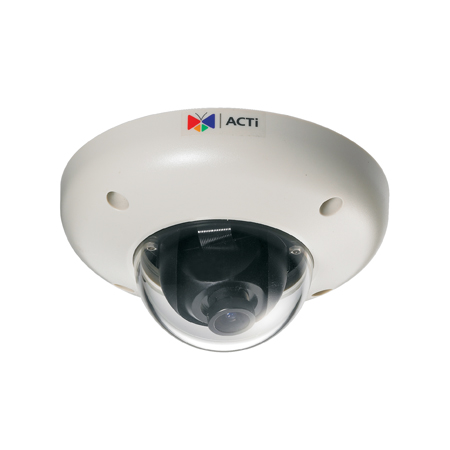

ACTi M-JPEG/MPEG-4 MegaPixel Indoor IP 2" Dome Camera

Accessories:

PPOE-0000-000R0 add $101.69

MegaPixel Lens, Board Lens, f2.4mm, 1/3", fixed IRIS
PLEN-0111 add $26.00

MegaPixel Lens, Board Lens, f6mm, 1/3", fixed IRIS
PLEN-0109 add $18.03

MegaPixel lens, Board Lens, f12mm, 1/3", fixed IRIS
PLEN-0110 add $18.03

ACM-3701

$497.42

Product Details

supports up to 1.3MegaPixel resolution, Micron MegaPixel CMOS module, f3.6/F1.8 lens, 3-axis, PoE only (no Midspans), w/ RJ-45 connector, ACTi NVR S/W

1/3" Micron Progressive Scan CMOS
Integrated with f3.6mm / F1.8 fixed lens
0.5 Lux at F1.0
Interchageable Lenses Available
Shutter Speed, White Blance, Exposure , Gain Controls supported
Selectable MPEG-4 / MJPEG compression
Up to SXGA resolution at 8 FPS
Multi-stream with variable frame rate in the same compression
Hardware motion detection
Support Power over Ethernet (IEEE 802.3af) only
Rugged RJ45 Ethernet connector
Weatherproof and vandal proof with IP66 protection

Specifications

Image	Device	Micron Progressive Scan CMOS
	Size	1/3"
	Effective Pixels	1280h x 1024v
Min. scene Illumination	Color	0.5 Lux at F1.0 (2400K, 30 IRE)
Lens	Lens	f3.6mm / F1.8 Horizontal 85 Degrees
Synchronization	Sync. System	Internal
Camera Angle Adjustment	Panning / Tilting	20 Degrees / 0~90 Degrees
Functions	Motion Detection	Yes 3 windows
	Electronic Shutter	1~5 ~ 1/15,000 sec
	Fixed Shutter Manual	1/30 ~ 1/1,000 sec (60Hz) 1/25 ~ 1/1,000 sec (50Hz)
	Flikerless	1/120 sec (60Hz) 1/100 sec (50Hz)
	BLC	Yes
	AGC	Automatic (User defined)
	White Balance	Auto, Indoor1, Indoor2, Outdoor1, Outdoor 2, Hold Current, Manual
S/N Ratio	S/N Ratio	Better than 44 dB
Video Compression	Compression	MPEG-4 SP / MJPEG
	Picture Resolution	SXGA (1280x960) HD 720 (1280x720) VGA (640x480) QVGA (320x240) QQVGA (160x112)
	Bit Rate	28K ~ 6M bps
	Image Frame Rate	8 fps at SXGA 10 fps at HD720 30 fps at VGA 30 fps at QVGA 30 fps at QQVGA
External I/O	Reset Button	Factory Default
External I/O	LED	System Status
Network	Ethernet	Ethernet(10/100 Base-T) Rugged RJ-45 connector
Network	Protocol	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, IPv6
Software	Web Browser	Microsoft Internet Explorer 6.0 or above
	SDK	ACTi SDK-10000
	Security	Password Protection: Configured by the Administrator
Operating	Temperature	-20C ~ 50C (4F ~ 122F )
Power	Power Requirements	PoE (IEEE 802.3af) with Class 3
Power	Power Consumption	2.4W

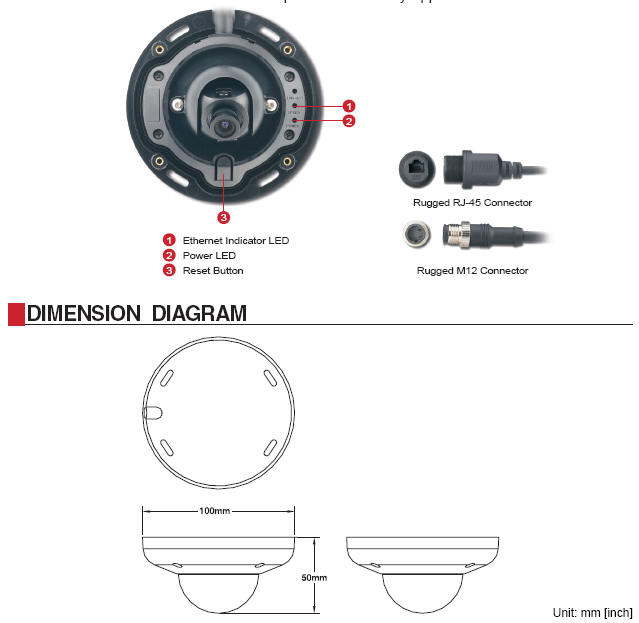

Physical	Dimensions	3.94" x 1.97"
Physical	Weight	0.48 lbs
Approvals	Certificate	CE, FCC, EN60950-1, EN55025, IP66, EN50155, ISO16750-3, Vibration
