ACTi M-JPEG/MPEG-4 Indoor IP 2

ACTi Indoor IP Dome Security Camera (RJ45)

Accessories:

PPOE-0000-000R0 add $101.69

MegaPixel Lens, Board Lens, f2.4mm, 1/3", fixed IRIS
PLEN-0111 add $26.00

MegaPixel Lens, Board Lens, f6mm, 1/3", fixed IRIS
PLEN-0109 add $18.03

MegaPixel lens, Board Lens, f12mm, 1/3", fixed IRIS
PLEN-0110 add $18.03

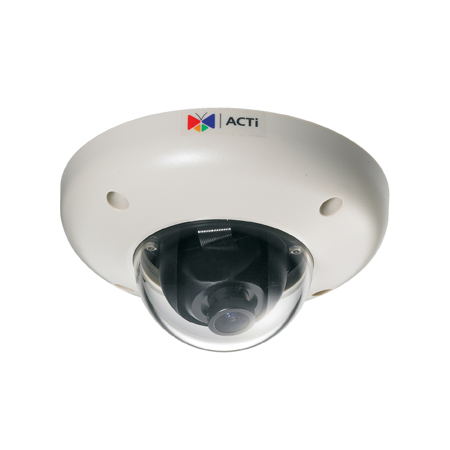

ACM-3601
$401.33

Product Details

supports up to VGA resolution, f3.6/F1.8 lens, 3-axis, PoE only (no Midspans), w/ RJ-45 connector, ACTi NVR S/W, Vandal Proof, Anti-vibration, IP-66
  • 1/3" Micron Progressive Scan CMOS
  • Integrated with f3.6mm / F1.8 fixed lens
  • 0.5 Lux at F1.0
  • Shutter Speed, White Blance, Exposure , Gain Controls supported
  • Selectable MPEG-4 / MJPEG compression
  • Multi-stream with variable frame rate in the same compression
  • VGA resolution at 30 FPS
  • Hareware motion detection
  • Support Power over Ethernet (IEEE 802.3af) only
  • Rugged RJ45 Ethernet connector
  • Weatherproof and vandal proof with IP66 protection


Specifications

Image Device Micron Progressive Scan CMOS
Size 1/3"
Effective Pixels 640h x 480v
Min. scene Illumination Color 0.5 Lux at F1.0 (2400K, 30 IRE)
Lens Lens f3.6mm / F1.8 Horizontal 85 Degrees
Synchronization Sync. System Internal
Camera Angle Adjustment Panning / Tilting 20 Degrees / 0~90 Degrees
Functions Motion Detection Yes 3 windows
Electronic Shutter 1~5 ~ 1/15,000 sec
Fixed Shutter Manual 1/30 ~ 1/1,000 sec (60Hz)
1/25 ~ 1/1,000 sec (50Hz)
Flikerless 1/120 sec (60Hz)
1/100 sec (50Hz)
BLC Yes
AGC Automatic (User defined)
White Balance Auto, Indoor1, Indoor2, Outdoor1, Outdoor 2, Hold Current, Manual
S/N Ratio S/N Ratio Better than 44 dB
Video Compression Compression MPEG-4 SP / MJPEG
Picture Resolution VGA (640x480)
QVGA (320x240)
QQVGA (160x112)
Bit Rate 28K ~ 6M bps
Image Frame Rate 30 fps at VGA
External I/O Reset Button Factory Default
LED System Status
Casing IP66 Rated Weatherproof casing with IP66 standard
Vandal Proof Vandal proof supports, durability up to 722.66 KgF
Mount Type Surface
Network Ethernet Ethernet(10/100 Base-T)
Rugged RJ-45 connector
Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, IPv6
Software Web Browser Microsoft Internet Explorer 6.0 or above
SDK ACTi SDK-10000
Security Password Protection: Configured by the Administrator
Operating Temperature -20C ~ 50C (4F ~ 122F )
Power Power Requirements PoE (IEEE 802.3af) with Class 3
Power Consumption 2.4W
Physical Dimensions 3.94" x 1.97"
Weight 0.48 lbs
Approvals Certificate CE, FCC, EN60950-1, EN55025, IP66, EN50155, ISO16750-3, Vibration

Drivers & Manuals

Photos & Videos

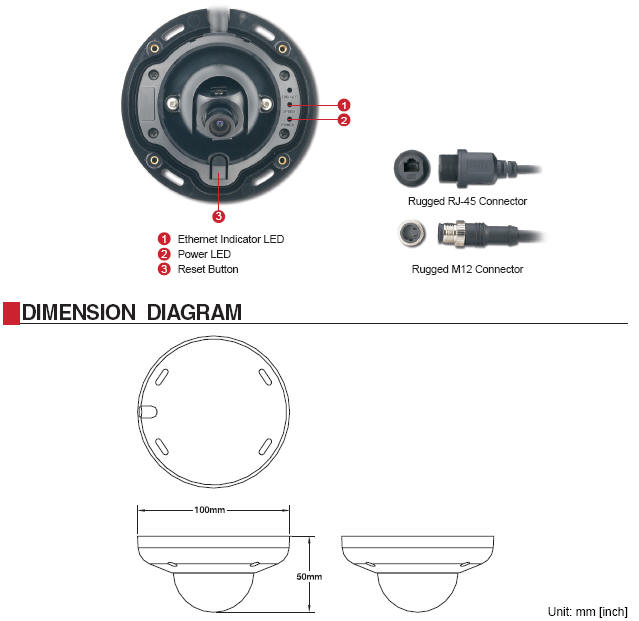

ACTi M-JPEG/MPEG-4 Indoor IP 2 TESTACM-3603-diagram.jpg

Accessories

  • ACTi M-JPEG/MPEG-4 Indoor IP 2
  • PLEN-0111
  • $26.00
  • MegaPixel Lens, Board Lens, f2.4mm, 1/3", fixed IRIS
  • ACTi M-JPEG/MPEG-4 Indoor IP 2
  • PLEN-0109
  • $18.03
  • MegaPixel Lens, Board Lens, f6mm, 1/3", fixed IRIS
  • ACTi M-JPEG/MPEG-4 Indoor IP 2
  • PLEN-0110
  • $18.03
  • MegaPixel lens, Board Lens, f12mm, 1/3", fixed IRIS
