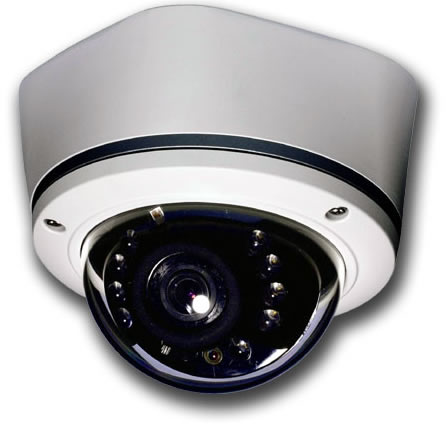

Indoor/Outdoor Vari-Focal Magnetic Elite Dome Camera

Indoor/Outdoor Vari-Focal Magnetic
Elite Dome Camera

IR Range 60 Feet


Configuration Options
EL450
Only:
$382.99



Product Details
  • 1/3" SSNR II SONY Super HAD CCD
  • 3.3-12mm Aspherical Ultra-low dispersion glass vari-focal lens
  • Highly enhanced resolution of 500 TVL (day)/560 TVL (night)
  • 0.1 Lux at F1.4 w/o LED, 0 Lux with LED

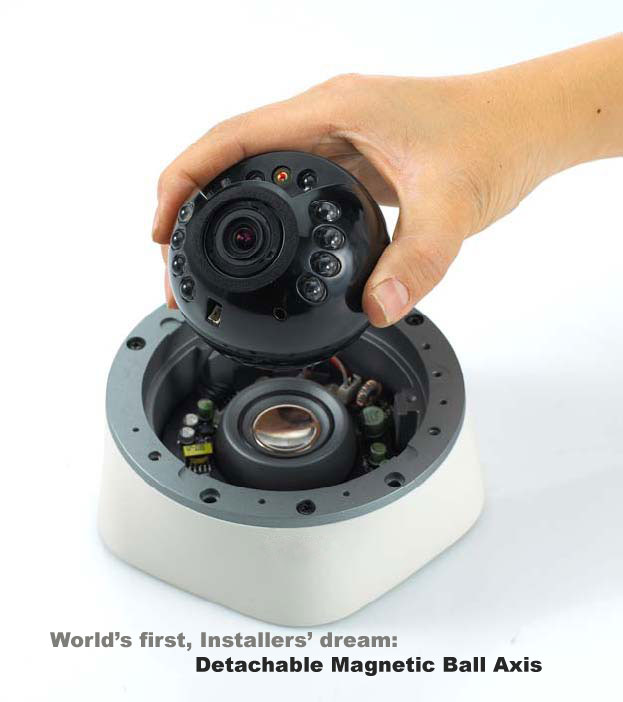

  • Magna Axis (World's first tool-less magnet adjustment)
  • 3 Layer IR Filter
  • Serve Ease Swappable Internal camera module with Magna Axis
  • Dual Switching Power - DC12V/AC24V
  • Spot Monitor Output
  • Wide range of automatic white balance
  • Lens Sold Separately


Specifications

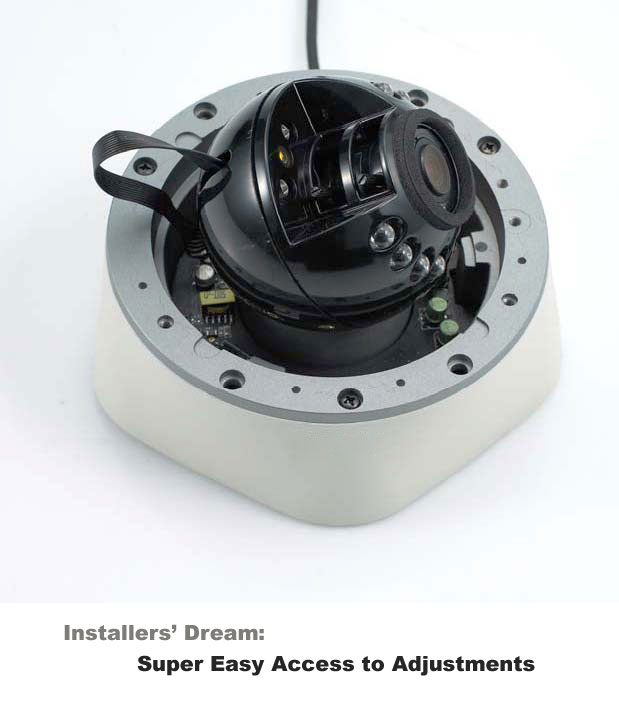

The EL450 is the first camera of its kind. It has a revolutionary design which allows all of the camera adjustments to be done with magnets. Ther is no longer the need for Tri-Axis. Now there is Magna Axis! It allows for a completely tool-less adjustment. There is no need for screws or knobs for adjusting anymore.

This camera also features "Smart Set", which will adjust to any lighting condition automatically without change any settings. There are no dip switches or OSD menus to worry about. The EL-450 is constantly adjusting to any changes in lighting insuring a perfect picture in both day and night.

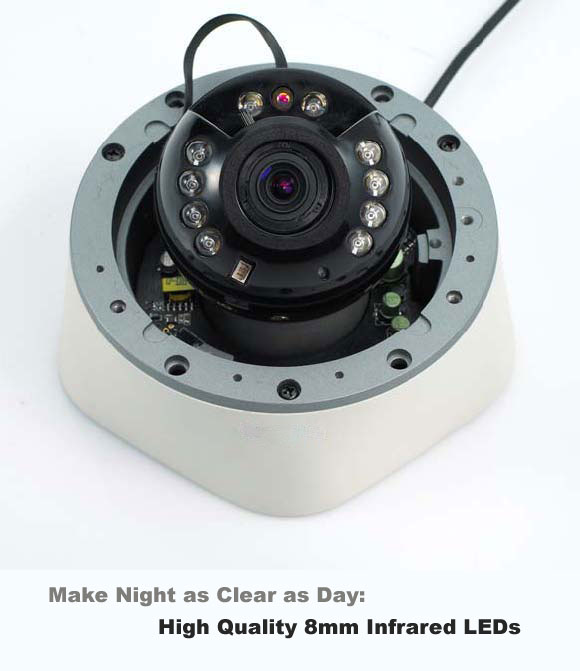

EL-450 is weather and vandal resistnat and can be either ceiling or flush mounted. It comes with 10 long range spread spectrum IRs and uses an optic sensor for perfect color reproduction.

Parameter

EL450

Image Sensor 1/3" SSNR II SONY Super HAD CCD
Signal Format NTSC / PAL
Effective Pixels NTSC: 768(H)x494(V)
PAL: 752(H)x582(V)
H. Resolution 500 TVL (day)
560 TVL (night)
Video Output Composite 1.0Vp-p at 75 Ohm
Min. Illumination 0.1 Lux at F1.4 w/o LED, 0 Lux with LED
Auto Shutter (AES) 1/60 ~ 1/100,000 sec.
Gamma Correction 0.45
White Balance Auto 2100 ~ 9100K
Scanning System 2:1 Interlace
Super Noise Reduction Auto
Backlight compensation: Auto
Gain Control Auto
S/N Ratio 50dB (AGC Off)
Shapness Auto
Lens 3.3-12mm Aspherical Ultra-low dispersion glass vari-focal lens
IR LED 850mm - 8x40 x 10 unit
Power Source AC24V/DC12V
IR Beam Distance 60 feet
Operation Current 400mA at DC12V, 190mA at AC24V
MTBF 20K Hours
Working Temperature -10C ~ +50C
Working Humidity 30% - 80%
Dimensions 150 (L) x 115.7(D) mm
Net Weight 1400g (3lb)
