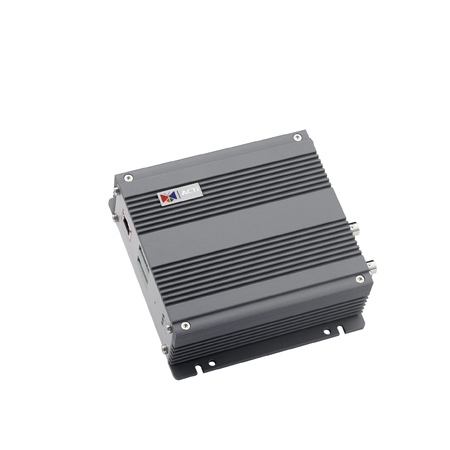

ACTi H.264 One-Channel Video Server

ACTi H.264 One-Channel Video Server


TCD-2500
$513.25

Product Details


  • H.264 / MPEG-4 SP / MJPEG triple codec with two simultaneous streams
  • CIF up to Full D1 resolution at 30/25 FPS
  • Wide Dynamic Range function supported
  • 3D Deinterlace function supported
  • Black Level Extension function supported
  • Digital Noise Reduction function supported
  • Digital time code embedded
  • Two-way audio supported
  • Hardware motion detection, Digital Input (non-isolated) / Output (isolated)


Specifications

Video Compression
Compression H.264 / MPEG-4 SP / MJPEG simultaneous dual streams selectable
Picture Resolution
Full D1 (720x480 in NTSC, 720x576 in PAL)
CIF (352x240 in NTSC, 352x288 in PAL)
QCIF (160x112 in NTSC, 176x144 in PAL)
Bit Rate 28K ~ 6M bps
Image Frame Rate
30 fps at full D1 resolution (NTSC)
25 fps at full D1 resolution (PAL)
Function
Motion Detection Yes
Wide Dynamic Range Yes
Deinterlacing 3D
Black Level Extension Yes
Digital Noise Reduction Yes
Video Input
Composite Input CVBS, 1.0Vp-p with 75 Ohms loading, BNC Connector
Video Output
Composite Output
CVBS, 1.0Vp-p with 75 Ohms loading, BNC Connector
Audio Input
Compression 8kHz, Mono, PCM
Audio Line Input Unbalanced, 1.4 Vpp, 1Vrms, 3.5 mm Phone Jack
Audio Output
Compression 8kHz, Mono, PCM
Audio Line Output Unbalanced, 1.4 Vpp, 1Vrms, 3.5 mm Phone Jack
Alarm
Digital Input 2, TTL, terminal block
Relay Output 1, 30Vdc 1A (125Vac 0.5A) , Terminal Block (NO/NC Type Supported)
Remote Control
Serial Port
RS-485: half duplex, terminal block
RS-422: full duplex, terminal block
RS-232: full duplex, terminal block
UART (TTL Level)
External I/O
Reset Button Factory default
LED System status
Network
Ethernet Port Ethernet(10/100 Base-T), RJ-45 Connector
Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP
Software
Web Browser Microsoft Internet Explorer 6.0 or above
SDK ACTi SDK-10000
PTZ Protocol Pelco-D, Pelco-P V1 and V2, Dynacolor, Sony VISCA, American Dynamics
Security Password Protection: Configured by the Administrator
Operating
Temperature -10C ~ 50C (14F ~ 122F)
Power
Power Requirement DC 12V +/-10%

Power Consumption

4.7W

Physical
Dimensions (WxHxD)
144 mm x 139.5 mm x 50 mm
( 5.67" x 5.49" x 1.97")

Weight-Net

870 g (1.92 lb)

Approvals

Certificate

CE, FCC

Drivers & Manuals

Cameras Manuals & Drivers
TCD-2500 Hardware Manual

Photos & Videos

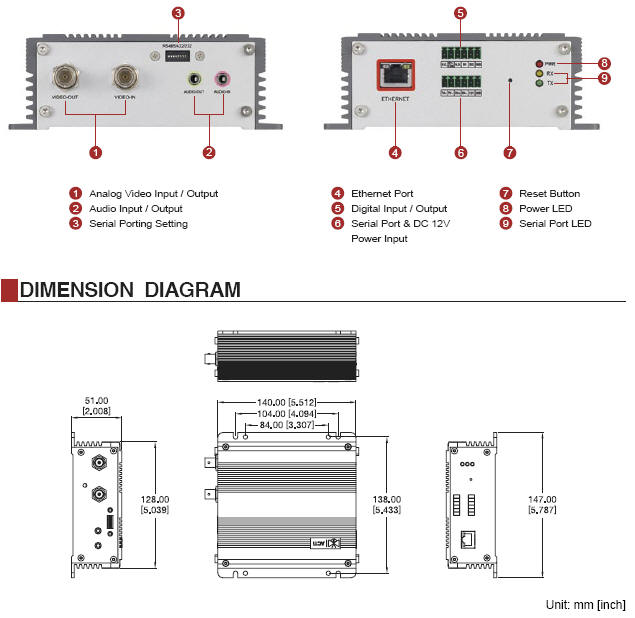

ACTi H.264 One-Channel Video Server TESTTCD-2500-diagram.jpg
