Video Compression	Compression		H.264/ MPEG-4 SP/ MJPEG simultaneous dual streams selectable
	Picture Resolution	Full D1 (720x480 in NTSC, 720x576 in PAL) CIF (352 x 240 in NTSC, 352 x 288 in PAL) QCIF(160 x 112 in NTSC, 176 x 144 in PAL)
	Bit Rate	28K ~ 6M bps
	Image Frame Rate	30fps at full D1 resolution (NTSC) 25fps at full D1 resolution (PAL)
Function	Motion Detection		Yes
Video Input	Composite Input		CVBS, 1.0Vp-p with 75 Ohms loading, BNC Connector
Video Output	Composite Output		N/A
Audio Input	Compression		N/A
	Audio Line Input	N/A
Audio Output	Compression		N/A
	Audio Line Output	N/A
Alarm	Input		1, TTL, terminal block
	Output	1, TTL, terminal block
Remote Control	Serial Port		RS-485: half duplex, terminal block RS-422: full duplex, terminal blockRS-232: full duplex, terminal block
External I/O	Reset Button		Factory default
	LED	System status
Network	Ethernet Port		Ethernet(10/100 Base-T), RJ-45 Connector
	Protocol	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP
Software	Web Browser		Microsoft Internet Explorer 6.0 or above
	SDK	ACTi SDK-10000
	PTZ protocol*	Pelco-D, Pelco-P V1 and V2, Dynacolor, Sony VISCA, American Dynamics
	Security	Password Protection: Configured by the Administrator
Operating	Temperature		-10C ~ 50C (14F ~122F)
Power	Power Requirement		DC12V +/- 10%
	Power Consumption	3.6 W
Physical	Dimensions (WxHxD)		103 mm x 28.5 mm x 76 mm (4.06" x 1.12" x 2.99")
	Weight	195 g(0.43 lb)
Approvals	Certificate		CE, FCC

Cameras Manuals & Drivers

TCD-2100 Hardware Manual

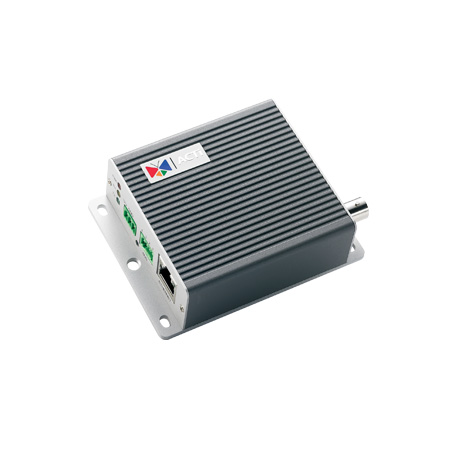

ACTi H.264 One-channel Entry-level Video Server
