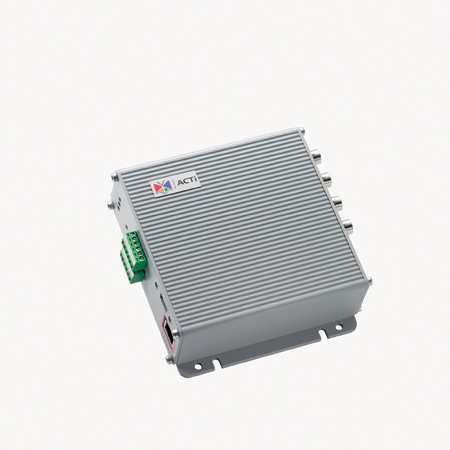

ACTi Four-channel MPEG-4 Quad Processor Integrated Video Server with Two Way Audio (Extended temperature)

ACTi Four-channel MPEG-4 Quad Processor Integrated Video Server with Two Way Audio (Extended temperature)


ACD-2000QT
$672.59

Product Details


  • Selectable MPEG-4 / MJPEG compression
  • CIF up to Full D1 resolution at 30/25 FPS
  • Multi-stream with variable frame rate in the same compression
  • Two way audio supported
  • Hardware motion detection, Digital Input / Output
  • Optional rackmount kit available
  • Real-time quad video
  • Full-screen or quad image display
  • Up to 4 analog video inputs blended into one digital MPEG-4 output stream
  • Extended temperature supported


Specifications

Video Compression
Compression MPEG-4 SP, MJPEG selectable
Picture Resolution Quad Mode :
Full D1 (720x480 in NTSC, 720x576 in PAL)

Sequential Mode (per channel) :
Full D1 (720x480 in NTSC, 720x576 in PAL)

Single Mode (per channel) :
Full D1 (720x480 in NTSC, 720x576 in PAL)
CIF (352 x 240 in NTSC, 352 x 288 in PAL)

Bit Rate 28K ~ 3M bps
Image Frame Rate Quad Mode :
30 fps at full D1 resolution (NTSC)
25 fps at full D1 resolution (PAL)

Sequential Mode :
30 fps at full D1 resolution (NTSC)
25 fps at full D1 resolution (PAL)

Single Mode :
7 fps at full D1 resolution (NTSC / PAL)
15 fps at CIF resolution (NTSC)
12 fps at CIF resolution (PAL)

Multi-stream Up to 2 configurable frame rate/bit rate streams for preview and recording
Function
Motion Detection Yes
Video Input
Composite Input 4, CVBS, 1.0Vp-p with 75 Ohms loading, BNC connector
Audio Input
Compression 8 kHz, Mono, PCM
Audio Line Input Unbalanced, 1.4 Vp-p, 1Vrms, 3.5 mm Phone Jack
Audio Output
Compression 8 kHz, Mono, PCM
Audio Line Output Unbalanced, 1.4 Vp-p, 1Vrms, 3.5 mm Phone Jack
Alarm
Digital Input 2, TTL, terminal block
Digital Output 2, TTL, terminal block
Remote Control
Serial Port RS-485: half duplex, terminal block
RS-422: full duplex, terminal block
RS-232: full duplex, terminal block
External I/O
Reset Button Factory default
LED System status
Network
Ethernet Port Ethernet (10/100 Base-T), RJ-45 connector
Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP
Software
Web Browser Microsoft Internet Explorer 6.0 or above
SDK ACTi SDK-10000
PTZ Protocol* Pelco-D, Pelco-P V1 and V2, Dynacolor, Sony VISCA, American Dynamics
Security Password protection: configured by the administrator
Operating
Temperature

-10C ~ 50C (14F ~ 122F); ACD-2000Q

-30C ~ 70C (-22F ~ 158F); ACD-2000QT
Power
Power Requirement DC 12V +/- 10%
Power Consumption 5.0 W
Physical
Dimensions (WxHxD) 119 mm x 41.7 mm x 122 mm (4.69" x 1.65" x 4.81")
Weight-Net 430 g (0.95 lb)
Approvals
Certificate CE, FCC

Drivers & Manuals


Photos & Videos

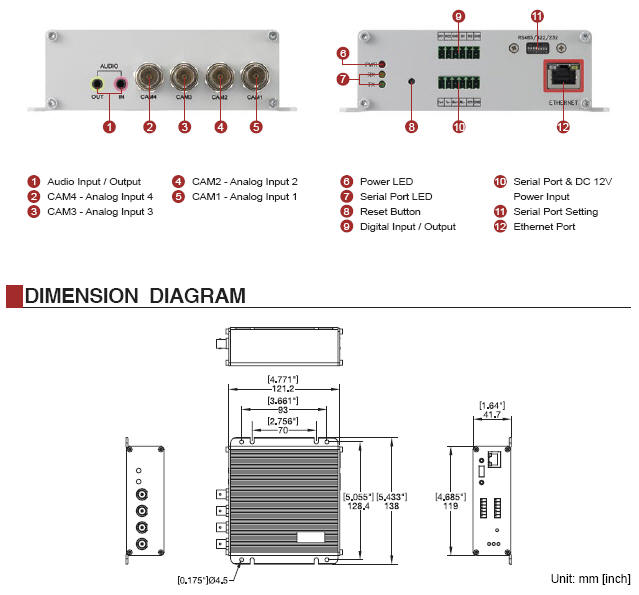

ACTi Four-channel MPEG-4 Quad Processor Integrated Video Server with Two Way Audio (Extended temperature) TESTACD-2000Q-diagram.jpg
