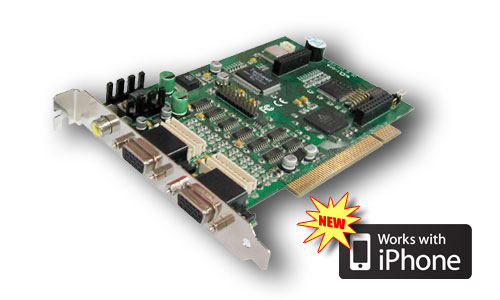

Protech 16A120 DVR Board

Protech 16ch 120fps 16A120 DVR Board
Configuration Options
BoardProGold16A120E
Only:
$319.15




Product Details
  • 120 frame display/recording MPEG4
  • 16 channel camera inputs (NTSC/PAL)
  • 16 channel sensor inputs (Optional)
  • 4 relay output (Optional)
  • 1 TV-Out port (1 Ch. Switching)
  • Optional RS-232/422/485 for Pan/Tilt/Zoom support
  • Supports Windows XP, Vista


Specifications

Model

BoardProGold16A120

O/S
(requirements)
Windows 2000, Windows XP

Motherboard (requirements)

Intel 865/875/915/945 Chipset

CPU
(requirements)

Intel Pentium 4 2.4 GHz or faster

RAM
(requirements)

512 MB recommended

Hard Drive
(requirements)

80 GB or greater

Graphics Card
(requirements)

ATI Radeon 9000 or above, Intel On-Board Video Controller
(*ATI Radeon X1K Series are not compatible)

Camera Inputs
16 Channels (NTSC/PAL)
Sound Inputs
2 Channels (Optional 16 Channel)
Sensor Inputs
16 Channels (optional)
Relay Outputs
4 Channels (optional)
Composite Output
1 Channel (NTSC/PAL, switching)
Max. Display Speed
120 Frames/sec (NTSC)
100 Frames/sec (PAL)
Max. Recoding Speed
120 Frames/sec (NTSC)
100 Frames/sec (PAL)
Resolution
NTSC - 320x240, 640x480
PAL - 352x288, 704x576
DVR Software
ProTech-DVR, ProTech-Net, ProTech-Web



DVR Software
Storage of high quality image data
Sound recording and support for two-way voice communication
Various modes of multi-view Screen (1, 4, 6, 9, 10, 16 Multi-view screen)
Movement detection and sensor activation
Fast and easy data search
Schedule management
Automatic data backup
E-mail Event Alert, IP Address Dispatch (for use with dynamic IP)
Control of multi-systems from a remote location (Net)
Support for the Internet Explorer (Web)

With PROTech-Net, you have access and total control of up to 16 DVR systems, including all of it's cameras (a total of 256 cameras) and search through and store all data of all the systems. PROTech-Web gives you the ability to check each camera with nothing more than an internet browser.

Common Applications
Automated Security Surveillance
Uses for automatic security surveillance (banks, buildings, factories, warehouses, apartments, parking lots, etc.)
Management and Surveillance of Trespassers
Uses for places with needs of management and surveillance of large crowds of people (hotels, casinos, department stores, large supermarkets, etc.)
Management and Surveillance of Branch Stores
Uses for needs of management and surveillance of each branch store from a remote location. (chain stores, agencies, etc.)
Advertisement Possibilities for Companies and Private Schools
Uses for advertisement or educational needs of Companies and Private Schools using real-time camera image on the internet. (companies, schools, private schools, kindergartens and other educational institutions, etc.)
