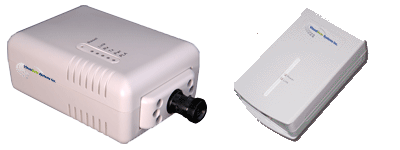

VueKIT
Complete IP Video Surveillance Solution
VueCAM VC-202
VueCAM is an IP camera which transmits real-time, high quality digital video
over any existing AC wiring. It employs simple "Plug in and Play" functionality
utilizing innovative new technology called Powerline data communications based
on HomePlug 1.0 standards. It has a built in web server which allows for live
viewing over the Internet, and will operate without the need for any further
cabling eliminating cost, complexity and time for installation required for
conventional surveillance cameras.
VueBRIDGE VA-601
The VueBRIDGE has been designed to convert Powerline data signals from any AC
wiring to standard Ethernet network connections, transforming AC power into a
secure broadband network which can easily be integrated into any existing video
surveillance network.
VueSOFT VSW-202 DVR Application
VisualGate's DVR type software VSW-202 will support monitoring and recording of
up to 4 VC-202 cameras and offers advanced surveillance features such as
user-friendly wizards, user management and user defined configurations. The
flexible software features include continuous recording, motion detection,
real-time playback, and remote connection.
System Features
| |
Quick and easy "plug in and
play" installation |
| |
Flexibility to move camera
to any AC outlet at any time |
| |
Powerline networking
eliminates the need for new LAN or video cabling |
| |
Based on HomePlug 1.0
compliant technology and standards |
| |
High resolution up to VGA
640 x 480, as well as CIF |
| |
Embedded web server to view
the live video over the Internet |
| |
Secure 56 bit encryption
and password protection provides for superior security |
| |
User-friendly
administration utility using standard web interface |
| |
Local and remote digital
recording for easy access |
| |
Recording software supports
up to 4 cameras |
| |
Multi-Zone motion detection
including email notification |
| |
Review and search stored
video by date and time |
| |
Scheduled recording with
multiple options |
| |
Records to video files on a
PC |
| |
Supports multiple user
logins |
| |
Infrared illumination for
low light conditions |
| |
RGB color filter for high
sensitivity |
| |
Digital signal processing
provides enhanced clarity, colour and details |
VueCAM Technical Specifications
| Model |
VC-202 |
| Sensor |
0.30um CMOS sensor - 5.04
um x 5.04um active square pixel |
| Resolution |
640X480, (total pixel array
size in 652x492, and 652x488 pixels are active) or 320x240 |
| Frame Rate |
Max frame rate: 10 fps
(VGA) |
| Lens |
Ό inch optical format,
Bayer RG color filter array Micro-lens for high sensitivity |
| Image Sensor |
10-bit Digital image signal
data bus |
| Compression |
Real-time baseline JPEG
compression |
| Image control |
Auto black level
compensation
Lens vignetting compensation
Advanced colour interpolation, color adjustment function and 2D edge
enhancement
Auto bad-pixel cancellation
Hardwired super-resolution filter |
| Standards |
HomePlug 1.0, 1EEE 802.3,
1EEE 802.3u |
| Network Interface |
HomePlug Powerline |
| Frequency |
4.3 Mhz - 20.9 Mhz |
| Modulation |
OFDM modulation |
| Security |
56-bit data encryption with
key management |
| Software |
IP-Cam utility
DVR recording application
JAVA and HomePlug utility: Device detect/diagnostic, NEK Password setup
for local and remote device Windows 2000, or XP for initial setup
Powerline system utility |
| LED Display |
Reset, Link, RX, TX, Power,
HomePlug |
| Certifications and
Regulatory |
FCC, CE, cUL/us |
| Operating Temperature and
Humidity |
Operating temp: 0 - 45 °C
Humidity: RH 10 - 90% non-condensing |
| Weight |
0.4 lbs / 0.2 kg |
| System Requirements |
Web Access - Java
supporting browser
DVR application - Windows 2000, or XP |
VueBRIDGE Technical Specifications
| Data Rates |
Powerline up to 85 Mbps |
| Frequency Band |
4.3 to 20.9 MHz |
| Ports |
1 PLC, 1RJ45 |
| Nodes |
Up to 12 nodes per
network |
| Encryption |
56 Bit data encryption
with key management |
| Access Methods |
CSMA/CATV System,
NTSC/PAL auto-switch |
| Modulation |
OFDM |
| Standards |
IEEE802.3, 802.3U,
HomePlug 1.0 |
| Network Interface |
VueBRIDGE Powerline |
| Cable Connection |
10Base-T: UTP CAT.3,4,5
100Base-TX: UTP CAT.5 |
| Installation |
Plug-and-Play |
| LED Indicators |
Link, Activity,
Collision |
| Certifications |
ULC, FCC B |
| Environment |
0° 70°C |
| Humidity |
5% - 90% |
| Operating System
Supported |
Windows 98 SE/ ME/ NT/
2000/ XP |
| Warranty |
One year |
For Full specs click here
