X-Treme Military Grade IR Indoor 2.8 ~
12mm Auto Iris Varifocal Dome Camera -
65 Foot IR

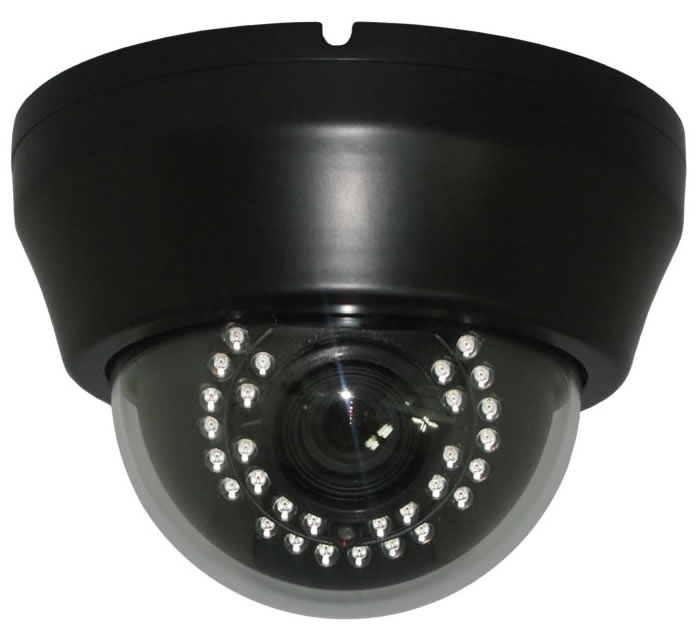

X-Treme Military Grade IR Indoor 2.8 ~ 12mm Auto Iris Varifocal Dome Camera - 65 Foot IR


X-CD700-IR
$223.39

Product Details

Sony Effio 1/3" 960H Exview HAD II CCD with 650(Day) / 700(Night) TV Resolution
  • 1/3" 960H Sony Exview HAD II CCD
  • 2.8 ~ 12mm DV Auto Iris Varifocal Lens
  • 0.1 Lux at F1.2
  • 650 TV Lines Resolution
  • Built-in OSD Controller
  • IR Anti-Saturation
  • ATR (Adaptive Tone Reproduction)
  • HLC (High Light Compensation)
  • Motion Detection
  • Lens Sold Separately
  • 65 Foot IR Range


Specifications

NTSC PAL PAL
Imaging Device 1/3" 960H Sony Exview HAD II CCD
Effective Pixels 976(H) x 494(V) 976(H) x582(V)
Scanning System 2:1 Interlace
Synchronization Interanl
Horizontal Resolution COLOR: 650TVL / B/W: 700TVL
Video Output CVBS: 1.0Vp-p, 75 Ohms composite
S/N (Y Signal) 52dB (AGC off, Weight on)
Min. Illumination 0.1 Lux at F1.2 (IR On: 0 Lux)
IRIS Adjustment Manual / Auto
LENS 2.8 ~ 12mm DV Auto Iris Varifocal Lens
ESC Auto/ Manual(1/60 ~ 1/10,000sec) Auto Manual(1/50 ~ 10,000sec)
OSD LANGUAGE English / Japan / German / French / Russian / Portuguese / Spanish
Backlight Compensation BLC / HLC / OFF
White Balance ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK
Auto Gain Control Manual / Auto
Day&Night Color / Auto / B/W
Privacy Masking On / Off(4 zones)
MIRROR On/ Off
MOTION On/ Off
ATR On/ Off
DNR Y/C Level Adjustment
Input Vlotage DC 12V(+/-10%) Only
Power Consumption 120mA(max)
Operating Temp. / Hum. -10C~ +50C / 30% ~ 80% RH
Storage Temp. / Hum. -20C~ +60C / 20% ~ 90% RH



The Sony "Effio" Chip is a signal processor chip employing processing modes that deliver high resolution, high S/N ratio and excellent color reproduction. Effio Chip

  • Extensive functionality and high picture quality
  • Built-in OSD functions
  • Horizontal (effective) resolution: 960 pixels (960H CCD image sensor)
  • High sensitivity and high saturation signal

EXview HAD CCD II" is a CCD image sensor that realizes sensitivity (typical) of 1000 mV or more per 1 µm2 (Color: F5.6/BW: F8 in 1 s accumulation equivalent) and improves light efficiency by including near infrared light region as a basic structure of Sony's "EXview HAD CCD".

High-Sensitivity, High-Resolution Camera Systems for Security Cameras Based on Diagonal 6.0 mm (Type 1/3) 480K/570K-Effective Pixel Color CCD Image Sensors Recently, Sony released the "Effio" System (CXD4112GG + CXD4813GG), which achieves the high sensitivity and high resolution considered critical in security cameras market. The "Effio-E" System (CXD4127GG + CXD4816GG), by combining this system with the ICX672AKA/ICX673AKA newly-developed CCD image sensors, users can take the lead in the security camera market, which now requires high sensitivity and high resolution.

"Effio-E" System CXD4127GG, CXD4816GG
The "Effio-E" System is an entry-level model camera system that is designed for easy introduction into end products from design through mass production and that inherits the basic picture quality characteristics that are features of the "Effio" Series, that is, high sensitivity, high resolution, and excellent color reproduction. The "Effio-E" System has a simple, 2-chip structure consisting of an analog IC (AFE: CXD4816GG) and a signal-processing IC (DSP: CXD4127GG) and supports a wide range of CCD image sensors.

These devices are provided in compact LFBGA packages and, due to the adoption of a new process technology generation, achieve a power consumption of 1/2 that of current systems. Thus the "Effio-E" System can contribute to miniaturization and reduced power consumption in camera products.
Effio Chip Pic B

Extensive Functionality and High Picture Quality
Even though the "Effio-E" System is an entry-level model camera system, it includes not only a noise reduction function, but it also provides an ATR (adaptive tone reproduction) function that improves contrast in bright/dark areas and a HLC (highlight compensation) function that suppresses strong headlights at night and improves visibility to provide clear images with superb picture quality.

In addition to the existing static method for white pixel detection and compensation, it also includes for the first time a dynamic method that can handle secondary white pixels. Furthermore, when combined with the ICX672AKA/ICX673AKA 960H CCD image sensors, it can provide the high horizontal resolution of 650 TV lines or higher.
Effio Chip Pic A
Effio Chip Pic C

Built-in OSD Functions
The "Effio-E" System includes OSD (on-screen display) functions that allow camera settings to be made using the display. This function provides preset menus in eight languages (English, French, German, Spanish, Portuguese, Chinese, Russian, and Japanese) and allows camera settings to be made easily without using an external microcontroller.
