C2-MAX-8-960H

8 Channel - 960H Resolution - Realtime Preview and playback

Hard Drive:

Monitor:

Accessories:
Vari-Focal SONY 1/3" High Resolution 550 Lines COLOR Dome Camera
SS-SCW-CD-540 add $119.63

High power High Resolution zoom camera with 22X optical zoom
SS-BigCannon-540IR add $99.70



C2-MAX-8-960H
$240.41

Product Details


  • Now with upgraded features  960H Resolution (960x576 or 960x480) @ 30fps all channels
  • New standard for DVR with high performance and competitive price
  • H.264 compression algorithm ideal for standalone DVRs
  • Realtime live display up to 8 cameras with 1080P high definition resolution
  • 240 fps recording
  • Dual encoding streams supported, flexible for network transmission and mobile phone monitoring
  • Pentaplex function: live, recording, playback, backup & remote access
  • 8 Channel simultaneous playback supported
  • Smart video detection: motion detection, camera blank, video loss
  • Smart camera settings: privacy masking, camera lock, color setting, and title display
  • Supported 3D intelligent positioning function with our Speed Domes
  • Alarm triggering screen tips, buzzer, PTZ preset, e-mail, FTP upload
  • Powerful network software: built-in web server, multi-DVR clients, MSS (Mobile Surveillance Software for smart phones) & CMS for windows PC's and Macs
  • Applications are Free.Apple, Android, Blackberry 9000 series +, and Windows Mobile 6.0 are available

HDMI Output 1920 x
1080

Specifications

System
Main Processor
High performance embedded microprocessor
Operating System
Embedded LINUX
System Resources
Pentaplex function: live, recording, playback, backup & remote access
User Interface
GUI, on-screen menu tips
Control Device
Front panel, USB mouse, keyboard, IR remote control, network keyboard
Input Method
Numeral / Character / Denotation
System Status
HDD status, data stream statistics, log record, bios version, on-line user etc.
Video
Video Input
8 Channel, BNC, 1.0Vp-p, 75 Ohms
Video Output
1 channel TV output, BNC, 1.0Vp-p, 75 Ohms, 1 VGA output, 1 HDMI output
Video Standards
PAL (625 Line, 50f/s)
NTSC (525 Line, 60f/s)
Video Compression
H.264
Video Resolution
PAL/NTSC
Real-time monitor: Full channel@960H(960×576/960×480) realtime recording
Playback: 1/9-ch:Full channel@960H(960×576/960×480) realtime recording, CIF 352x288/ 352x240, QCIF 176x144 / 176x120
Other channels: CIF 352x288/ 352x240 QCIF 176x144 / 176x120
Support dual streams: extra stream resolution QCIF 176x144 / 176x120
Video Recording
Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel
Video Display Split
Full and multiple screen display
Tour Display
Support
Image Quality
1~6 level (level 6 is the best)
Privacy Masking
4 self-defined four-sided zones for privacy masking for each camera
Camera Lock
Camera locked for users
Camera Adjustment
Adjust color according to different time period
Video Information
Camera title, time, video loss, camera lock, motion detection, recording
TV Output Adjustment
Adjust TV output color & display zone
Audio
Audio Input
4/8 Channel, BNC, 200-2800mV, 30K Ohms
Bidirectional Talk Input
1 Channel, BNC, 200-2800mV, 30K Ohms, same with the 1st channel
Audio Output
1 channel, BNC, 200-300mv, 5K Ohms
Audio Compression
G.711
Video Detection & Alarm
Motion Detection
Zones: 396 (22*18) detection zones
Sensitivity: 1~6 (level 6 is highest)
Trigger recording, PTZ movement, tour, alarm, email
Video Loss
Trigger recording, PTZ Movement, tour, alarm, email
Camera Blank
Trigger recording, PTZ Movement, tour, alarm, email
Alarm Input
4/8 channel, programmable, ground, manual open/closed
Trigger recording, PTZ movement, tour, alarm, email
Relay Output
3/3/3 channel, 30VDC, 1A, NO/NC, form-C
Hard Disk
Hard Disk
1 SATA port, 1 HDD supported
Space Occupation
Audio: 14.4MB/H
Video: 56~500MB/H
HDD Management
Hard disk hibernation technology, HDD faulty alarm
Record, Playback & Backup
Recording Mode
Manual, continuous, video detection (including motion detection, camera blank, video loss), Alarm
Recording Priority
Manual > Alarm > Video Detection > Continuous
Recording Interval
1 to 120 minutes (default: 60 minutes), Pre-record up to 30 seconds, Post-record up to 5 minutes
Overwrite Mode
Support
Search Mode
Time/Date, Alarm, Motion Detection & exact search (accurate to second)
Playback
4/8 channel playback simultaneousl
Digital Zoom
Selected zone can zoom into full screen during playback
Backup Mode
Flash disk / USB HDD / USB CD/DVR-RW/ Network download
Network
Interface
RJ-45 Port (10/100M)
Network Functions
TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
Remote Operation
Monitor, PTZ control, playback, system setting, file download, log information
Auxiliary Interface
USB Interface
2 ports, 1 for mouse control, 1 for backup
RS232
DAHUA keyboard, PC communication
RS485
PTZ control
Environmental
Power Supply
220V 50Hz / 110V 60Hz
Power Consumption
25W
Working Temperature
-10C ~ 50C
Working Humidity
10%~90%
Atmosphere Pressure
86kpa~106kpa
Dimension
1U, 375mm x 285mm x 45mm (WxDxH)
Weight
2.35KG (without HDD)
Mounting
Desktop or rack



Photos & Videos

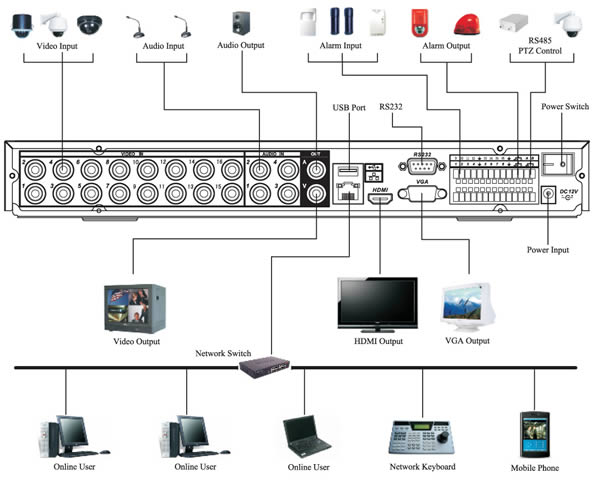

C2-MAX-8-960H TESTDVR16N-flowchart.jpg

Accessories

  • C2-MAX-8-960H
  • SS-SCW-CD-540
  • $119.63
  • Vari-Focal SONY 1/3" High Resolution 550 Lines COLOR Dome Camera
