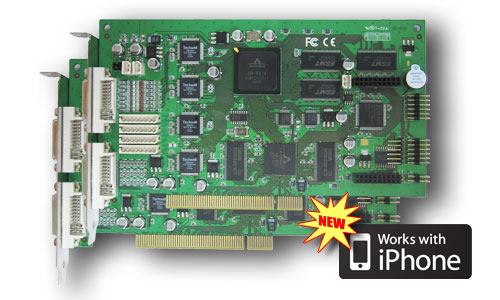

Protech 32ch 960 fps MPG DVR Board

Protech 32ch 960 fps H.264 DVR Boards
Configuration Options
BoardPlat32960HE
Only:
$2,021.55




Product Details
  • Hardware MPEG-4 CODEC
  • Hardware compression provides PC with Low CPU Load for Recording Real Time
  • 960 fps display/recording
  • 2 PCI Boards (48016AMX + 96032Slave)
  • 32 channel camera inputs (NTSC/PAL)
  • 32 channel sound inputs
  • 32 channel sensor inputs (Optional)
  • 8 relay output (Optional)
  • 1 TV-Out (Synch. Mode-Following the Main Display)
  • Supports RS-232/422/485 Pan/Tilt port


Specifications

Model

BoardPlat32960

O/S
Windows XP Pro and Windows Vista optional
Camera Inputs
32 Channels (NTSC/PAL)
Sound Inputs
32 Channels
Sensor Inputs
32 Channels (Optional)
Relay Outputs
8 Channels (Optional)
Composite Output
1 Channel (Synch. Mode-Following the Main Display)
Max. Display Speed
960 Frames/sec (NTSC), 800 Frames/sec (PAL)
Max. Recoding Speed
960 Frames/sec (NTSC), 800 Frames/sec (PAL)
Resolution
NTSC - 704x480 and 704x240 and 352x240
(PAL - 352x288, 704x288/576)
DVR Software
ProGold


DVR Software
Storage of high quality image data
Sound recording and support for two-way voice communication
Various modes of multi-view Screen (1, 4, 6, 9, 10, 16, 32 Multi-view screen)
Movement detection and sensor activation
Fast and easy data search
Schedule management
Automatic data backup
E-mail Event Alert, IP Address Dispatch (for use with dynamic IP)
Control of multi-systems from a remote location (Net)
Support for the Internet Explorer (Web)


With PROTech-Net, you have access and total control of up to 16 DVR systems, including all of it's cameras (a total of 256 cameras) and search through and store all data of all the systems. PROTech-Web gives you the ability to check each camera with nothing more than an internet browser.

Common Applications
Automated Security Surveillance
Uses for automatic security surveillance (banks, buildings, factories, warehouses, apartments, parking lots, etc.)
Management and Surveillance of Trespassers
Uses for places with needs of management and surveillance of large crowds of people (hotels, casinos, department stores, large supermarkets, etc.)
Management and Surveillance of Branch Stores
Uses for needs of management and surveillance of each branch store from a remote location. (chain stores, agencies, etc.)
Advertisement Possibilities for Companies and Private Schools
Uses for advertisement or educational needs of Companies and Private Schools using real-time camera image on the internet. (companies, schools, private schools, kindergartens and other educational institutions, etc.)
