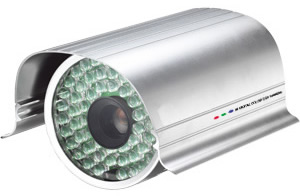

High power High Resolution zoom camera with 22X optical zoom

High power High Resolution zoom camera
with 22X optical zoom
Configuration Options
BigCannon-540IR
Only:
$159.55

Can be controlled from DVR or PTZ controller

Product Details
  • 1/4" Sony 540 TV Lines
  • 0.01 Lux
  • 22x optical Zoom with focus
  • OSD Menu
  • Outdoor High Power zoom camera
  • Remote Zoom Control, 3.6 to 79 mm Optical Zoom
  • Waterproof, Aluminum housing Professional camera

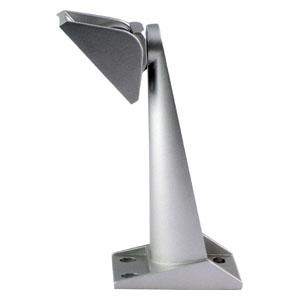

  • Also includes mounting bracket

Manufacturing error: This cameras was supposed to include a low light module but someone made a mistake.  Instead they put in a high resolution 540 line camera module, it doesn’t have a good night vision but it has a great Daytime zoom image. Great for parking lots and zooming in on License plates and tags.

The manufacture told us blow them out so we are slashing $150 off the original cost while they last.



Specifications

  • Pick-up Device: 1/4" SONY CCD
  • Scanning Area: 3.6mm(H)×2.7mm(V)
  • Picture Element: PAL:752(H)×582(V) NTSC:768(H)×494(V)
  • TV System: PAL/NTSC
  • Horizontal Resolution: 540TV Lines
  • Minimum Illumination: IR ON 0.01 Lux
  • S/N Ratio: More than 48dB
  • Auto Electronic Shutter: PAL:1/50s-1/100,000s NTSC:1/60s-1/100,000s
  • Gamma Characteristic: 0.45
  • Auto Gain Control: Auto
  • Auto White Balance: Auto
  • Back Light Compensation: Auto
  • Synchronous System: Internal Synchronization
  • Lens Mount:Lens: 22X(3.9-85.8mm)
  • Video Output: 1.0Vp-p,75Ohms, BNC Connector
  • Protection Rate: IP 66
  • Power Supply: DC 12V
  • Power Consumption: 150mA(IR ON MAX 1190mA)
  • Operating Temperature: -10 ~ 50

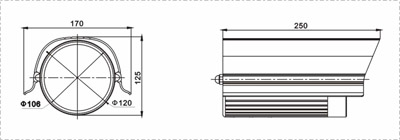

  • Dimensions(W×D×H): 250mm×170mm×125mm
  • Weight(g): 2061g
  • Material: Aluminum alloy
  • 22x optical Zoom with focus
  • OSD Menu
  • Outdoor High Power Night Vision camera
  • Remote Zoom Control, 3.6 to 79 mm Optical Zoom
  • Waterproof, Aluminum housing Professional camera
  • Also includes mounting bracket
