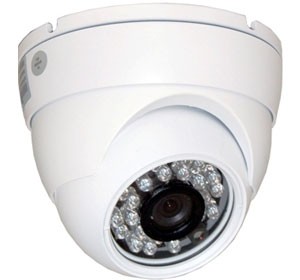

1/3" Sony IMX 138 CHIPSET, CMOS IMAGE SENSOR, vandal proof, 960H resolution, 3.6mm lens, 65 ft. IR range, weather proof, 12v DC


Product Details

  • 1000 TVL
  • 960H – High Definition 970 x 480
  • 3.6mm Lens
  • 23 IR LED units with a distance of up to 65 feet
  • Weatherproof (IP66)
  • 12VDC
  • 1 Year Warranty


Image Device 1/3″ Sony
Lens 3.6 mm
Effective Pixels NTSC 976 x 494 PAL 976 x 582
Horizontal Resolution 1000 TVL
Minimum Illumination 0 lux (With IR LED on)
S/N Ratio More than 48dB
Body Color White
Electronic Shutter NTSC: 1/60 to 1/100,000 sec PAL: 1/50 to 1/100,000 sec
Gamma Characteristic 0.45
IR LED 20 Meters with 23 Unit LED
Sync. Mode Negative sync. Internal
Video Output 1 Vp-p, 75 ohm
Automatic Gain Control Auto
Power Source 12VDC
Operating Temperature -10C ~ +45C
Dimensions 4.72″ x 3.93″
Weight 1.3lbs
Warranty 1 Year
