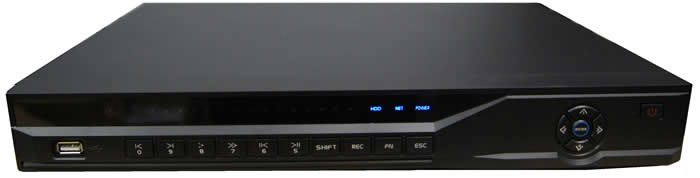

C2-MAX-4-960H

4 Channel - 960H resolution - Realtime live and recording

Hard Drive:

Monitor:


C2-MAX-4-960H
$155.29

Product Details


  • Now with upgraded features  960H Resolution (960x576 or 960x480) @ 30fps all channels
  • New standard for DVR with high performance and competitive price
  • H.264 compression algorithm ideal for standalone DVRs
  • Realtime live display up to 4 cameras with 1080P high definition resolution
  • 120 fps recording
  • Dual encoding streams supported, flexible for network transmission and mobile phone monitoring
  • Pentaplex function: live, recording, playback, backup & remote access
  • 4 Channel simultaneous playback supported
  • Smart video detection: motion detection, camera blank, video loss
  • Smart camera settings: privacy masking, camera lock, color setting, and title display
  • Supported 3D intelligent positioning function with our Speed Domes
  • Alarm triggering screen tips, buzzer, PTZ preset, e-mail, FTP upload
  • Powerful network software: built-in web server, multi-DVR clients, MSS (Mobile Surveillance Software for smart phones) & CMS for windows PC's and Macs
  • Applications are Free.Apple, Android, Blackberry 9000 series +, and Windows Mobile 6.0 are available

HDMI Output 1920 x
1080

Specifications

System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 4 channel, BNC
Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input 4 channel, RCA
Output 1 channel, RCA
Two-way Talk Reuse audio input/output channel 1
Display
Interface 1 HDMI, 1 VGA, 1 TV, BNC(1.0Vp-p, 75Ω)
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split 1/4
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264 / G.711
Resolution 960H/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)
Record Rate Main Stream: 960H/D1(1~25/30fps)
Extra Stream CIF(1~25/30fps)
Bit Rate 48~3072Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection& Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 4 channel
Relay Output 3 channel
Playback & Backup
Sync Playback 1/4
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device / Network
Network
Ethernet RJ-45 port (10/100M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB Interface 2 ports (1 Rear), USB2.0
RS485 PTZ control
General
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H) Mini 1U, 325mm×245mm×45mm
Weight 1.5KG(without HDD)



Photos & Videos



C2-MAX-4-960H TEST

Accessories

Comments & Reviews
