Single channel 2400 metre Twisted Pair TX/RX Kit with Terminals

Single channel 2400 metre Twisted Pair TX/RX Kit with Terminals


W103
$117.89

Product Details


  • Single channel 2400 metre Twisted Pair TX/RX Kit with Terminals


Specifications


W103T
   W103T
VIDEO INPUT
   1Vp-p, 75W (BNC Connector)
AUDIO INPUT
   Unsupported
DC OUTPUT FOR MOTION SENSOR
   DC12V, 50mA (max)
SENSOR INPUT
   Unsupported
DC OUTPUT FOR CAMERA
   DC12V Regulated, 300mA (max)
POWER CONSUMPTION
   40mA
DIMENSIONS
   49 x 42 x 45mm
W103R
   W103R
VIDEO OUTPUT
   1Vp-p, 75W (BNC Connector)
VIDEO OUTPUT PORT
   2
AUDIO INPUT
   Unsupported
POWER INPUT
   DC12V @80ma
Video Gain Selection
   Select 1 0~300M Select 2 300~600M Select 5,1 1500~1800M
Video Gain Selection
   Select 3 600~900M Select 4 900~1200M Select 5,2 1800~2100M
Video Gain Selection
   Select 5 1200~1500M Select 5,3 2100~2400M
Recommended cable
   CAT-5 UTP Cable 4 pair (24AWG, 22AWG, 20AWG)
Dimensions
   49 x 42 x 45mm





Drivers & Manuals

Photos & Videos

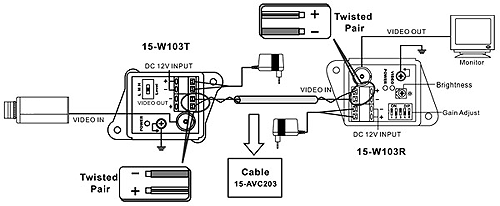

Single channel 2400 metre Twisted Pair TX/RX Kit with Terminals TEST15_w103_2.gif

Accessories

Comments & Reviews
