Single channel 2400 metre Twisted Pair
RX

Single channel 2400 metre Twisted Pair RX


W102R
$65.97

Product Details


  • Single channel 2400 metre Twisted Pair RX


Specifications

Video Output : 1Vp-p 75W(BNC Connector)
Video Output Port :
2
Audio Input :
2Vp-p 10KW (RCA Connector)
Power Input :
DC12V, 80mA (max)
Video Gain Selection :
Select 1 0~300M Select 2 300~600M Select 5,1 1500~1800M
Video Gain Selection :
Select 3 600~900M Select 4 900~1200M Select 5,2 1800~2100M
Video Gain Selection :
Select 5 1200~1500M Select 5,3 2100~2400M
Recommended Cable :
CAT5 UTP Cable 4 pair (24AWG, 22AWG, 20AWG)
Dimensions : 88 x 62 x 24mm



W102T
  W102T
VIDEO INPUT
  1Vp-p, 75W (BNC Connector)
AUDIO INPUT
  2Vp-p, 10KW (RCA Connector)
DC OUTPUT FOR MOTION SENSOR
  DC12V, 50mA (max)
SENSOR INPUT
  Bypass
DC OUTPUT FOR CAMERA
  DC12V Regulated, 300mA (max)
POWER CONSUMPTION
  40mA
DIMENSIONS
  88 x 62 x 24mm
W102R
  W102R
VIDEO OUTPUT
  1Vp-p, 75W (BNC Connector)
VIDEO OUTPUT PORT
  2
AUDIO INPUT
  2Vp-p, 10KW (RCA Connector)
POWER INPUT
  DC12V @80ma
Video Gain Selection
  Select 1 0~300M Select 2 300~600M Select 5,1 1500~1800M
Video Gain Selection
  Select 3 600~900M Select 4 900~1200M Select 5,2 1800~2100M
Video Gain Selection
  Select 5 1200~1500M Select 5,3 2100~2400M
RECOMMENDED CABLE
  CAT-5 UTP Cable 4 pair (24AWG, 22AWG, 20AWG)
DIMENSIONS
  88 x 62 x 24mm

Drivers & Manuals


Photos & Videos



Single channel 2400 metre Twisted Pair

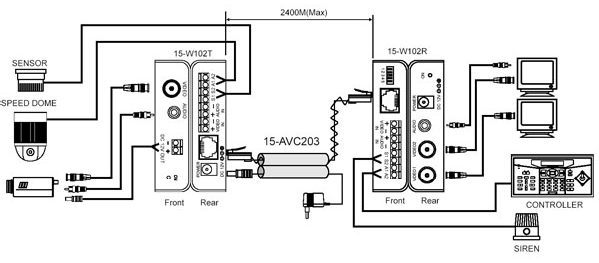

RX TESTw102diagram.gif
