Specifications

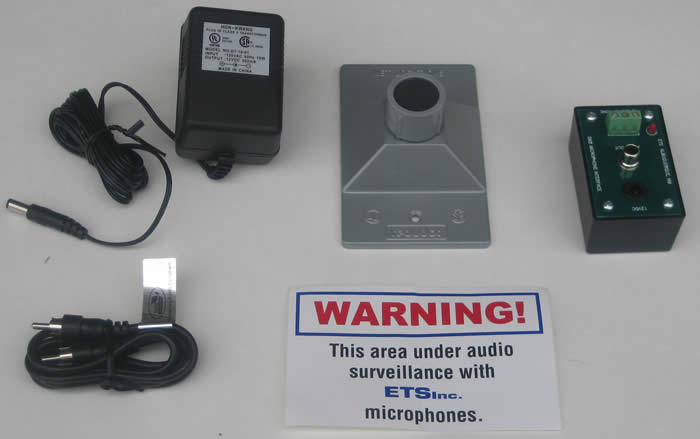

Kit Includes
SM1 Pre-amplified microphone.
SM2 Interface adapter.
12 VDC AC adapter.
3 RCA Patch cable.
Warning label.
Options
SM1S surface mount adapter for SM1.
White (standard) or ivory face plate.
Wiring Requirements
Stranded 22-gauge, 2-conductor shielded cable. Distances up to 1500�.
Caution
I t may be against the law to install this equipment in certain environments. It is the responsibility of the installation company and end user to comply with state and federal laws. If you are unfamiliar with these laws, consult a qualified attorney. Warranty 1 year parts and labor.
SM1 Microphone Specifications
Omni-directional Electret element.
25' range in all directions.
Low noise MOSFET pre-amplifier.
Line level, unbalanced output.
Adjustable gain.
Treble boost circuit. Selectable on/off.
Enhances clarity of time lapse recordings.
Limiter circuit. Selectable on/off.
Easy cable run termination.
Flush or surface mountable. Can be mounted on a single gang electrical box.
Power: 12 VDC @ 10mA
SM2 Interface Adapter Specifications
Standard RCA jack for connection to tape recorders, etc.
Easy cable run
