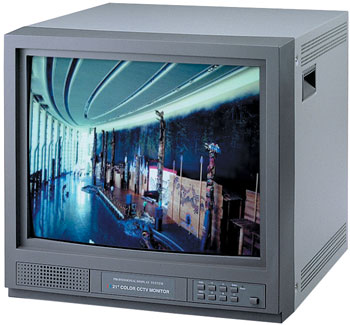

21 inch Color Hi-Res Security Monitor
500 Lines

21 inch Color Hi-Res Security Monitor 500 Resolution Lines


SCW-CO21
$450.87

Product Details


  • HORIZONTAL RESOLUTION 500 Lines
  • BANDWIDTH 100HZ>10 MHZ (+/-3DB)
  • VIDEO GAIN 30dB
  • FREQUENCY EIA HORIZONTAL: 15.750 KHz / VERTICAL: 60HZ
  • CCIR HORIZONTAL: 15.625 KHz / VERTICAL: 50HZ
  • VIDEO INPUT IMPEDANCE 0.5~2 V p-p Composite Video SYNC Negative
  • VIDEO INPUT IMPEDANCE 75 Ohm / High Impedance, switchable. BNC connector
  • AUDIO INPUT Max 2Vp-p (Option)
  • SPEAKER 0.25 W/8 W (Option)
  • CRT 90 Degrees
  • POWER SUPPLY AC120V/230V, 50Hz/60Hz
  • CONSUMPTION 80 Watts
  • DIMENSION 492 x 464 x 482mm
  • WEIGHT 27kg
  • ENCLOSURE Steel
  • OPERATING TEMPERATURE -10 to 45C


Specifications



  • HORIZONTAL RESOLUTION 500 Lines
  • BANDWIDTH 100HZ>10 MHZ (+/-3DB)
  • VIDEO GAIN 30dB
  • FREQUENCY EIA HORIZONTAL: 15.750 KHz / VERTICAL: 60HZ
  • CCIR HORIZONTAL: 15.625 KHz / VERTICAL: 50HZ
  • VIDEO INPUT IMPEDANCE 0.5~2 V p-p Composite Video SYNC Negative
  • VIDEO INPUT IMPEDANCE 75 Ohm / High Impedance, switchable. BNC connector
  • AUDIO INPUT Max 2Vp-p (Option)
  • SPEAKER 0.25 W/8 W (Option)
  • CRT 90 Degrees
  • POWER SUPPLY AC120V/230V, 50Hz/60Hz
  • CONSUMPTION 80 Watts
  • DIMENSION 492 x 464 x 482mm
  • WEIGHT 27kg
  • ENCLOSURE Steel
  • OPERATING TEMPERATURE -10 to 45C
