Topology |
Standby |
|
On-battery Output Waveform |
Simulated Sine Wave |
|
INPUT |
|
Maximum Capacity |
730VA/365W |
|
Nominal Input Voltage |
110V/115V/120V (!!) |
|
Input Frequency |
50Hz +/- 10% or /60Hz +/- 10% |
|
Input Short Protection |
Circuit Breaker |
|
AC Line-In Plug |
NEMA 5-15P
|
 |
|
OUTPUT |
|
Nominal Output Voltage |
110V/115V/120V (!!) |
|
Output Voltage (Battery Mode) |
110V/115V/120V +/- 7% |
|
Transfer Time |
4 ms |
|
Auto Restart |
Yes |
|
Start on Battery |
Yes |
|

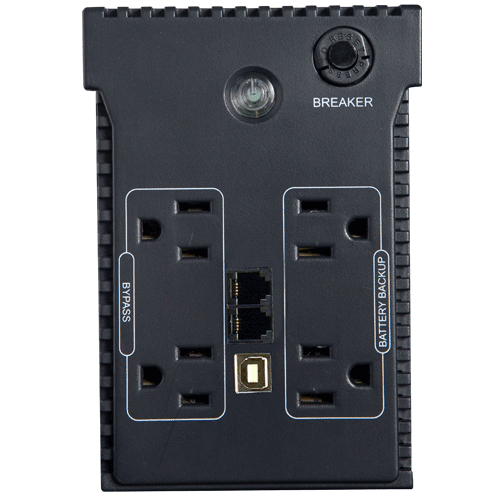

Type and Number of Outlets |
2 Battery Backup + 2 Surge Protection |
 |
|
SURGE PROTECTION & FILTERING |
|
Data Line Protection |
RJ11 / RJ45 |
|
Surge Energy Rating/Peak Current Capability |
460 Joules |
|
Normal Mode Noise Suppression |
Full time EMI/RFI filtering |
|
USER REPLACEABLE BATTERY |
|
User Replaceable Battery |
RBAT-C12 |
|
Full load runtime |
0.75 Minutes |
|
Half load runtime |
12 Minutes |
|
Typical Recharge Time to 90% |
<4 Hours |
|
ADVANCE WARNING DIAGNOSTICS |
|
Front Panel LEDs |
AC mode, Battery mode, Battery fault |
|
Audible Alarms |
Battery Mode, Battery Low, Full Load, Overload |
|
COMMUNICATIONS INTERFACE |
|
Communication Port |
USB port |
|
ENVIRONMENTAL |
|
Operating Temperature |
0°C~40°C / 32°F~104°F |
|
Storage Temperature |
-25°C~55°C / -13°F~131°F |
|
Audible Noise |
< 40 dB(A) (AC MODE), 1M distance |
|
PHYSICAL |
|
Dimensions (LxWxH) |
Physical |
5.43x3.74x6.22 inch / 138x95x158 mm |
|
Packing |
6.57x4.33x10.2 inch / 167x110x260 mm |
|
Weight |
Net |
5.5 lb / 2.5 kg |
|
Gross |
6.0 lb / 2.7 kg |
|
CONFORMANCE |
|
Approvals |
UL/cUL |
