Topology |
Line-Interactive |
|
On-battery Output Waveform |
Simulated Sine Wave |
|
INPUT |
|
Maximum Capacity |
1500VA / 900W |
|
Nominal Input Voltage |
110/120Vac (!!) |
|
Nominal Input Frequency |
50Hz / 60Hz Auto Sensing |
|
Input Voltage Range |
Rated Voltage ± 25% |
|
Input Protection |
Fuse; Circuit Breaker for TS1250 and TS1700 models with US outlets |
|
Input Inlet |
IEC-320-C14 |
|
AC Line-In Plug |
110/120V |
NEMA 5-15P |
 |
|
OUTPUT |
|
Nominal Output Voltage |
110/120Vac (!!) |
|
Output Voltage Regulation |
Rated Voltage ± 5% |
|
Transfer Time (Typical) |
4 ms |
|
Start on Battery |
Yes |
|
Auto Restart |
Yes |
|
Automatic Voltage Regulator (AVR) |
When the input voltage is 9 % to 25 % lower than the mains electricity, automatically raise the voltage by 15 % |
|
When the input voltage is 9 % to 25 % higher than the mains electricity, automatically lower the voltage by 13 % |
|

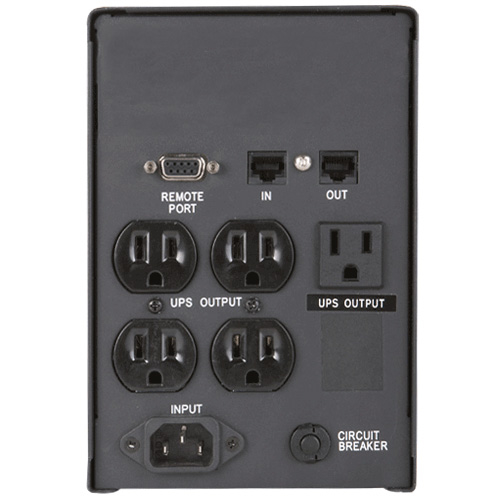

Type and Number of Outlets |
110/120V |
NEMA 5-15R
5 x Battery Backup |
 |
|
COMMUNICATIONS INTERFACE |
|
Data Line Surge Protection |
RJ11 / RJ451) |
|
PROTECTION |
|
|
Surge Energy Rating |
460 Joules (IEC outlets models)
265 Joules (NEMA outlets models) |
|
Overload Protection |
UPS automatic power off if overload exceeds 110% of nominal at 60 seconds and 130% at 3 seconds. |
|
Short Circuit |
UPS output immediate cut off or input fuse protection |
|
BATTERY |
|
User Replaceable Batteries |
12V / 34W × 2 |
|
Typical Backup Time** |
45 minutes |
|
Recharge Time to 90% |
< 4 hours |
|
Protection |
Auto discharge protection |
|
ADVANCED WARNINGS / DIAGNOSTICS |
|

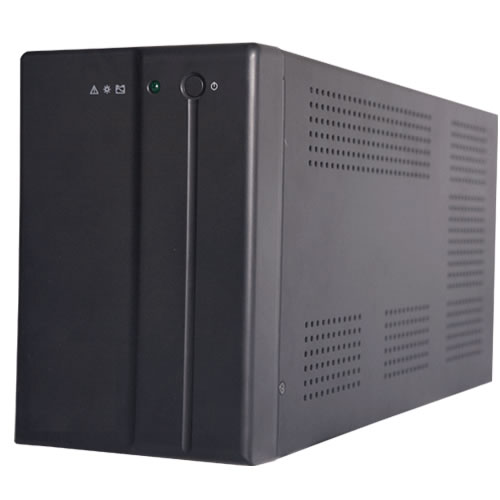

Front Panel LEDs |
Power Status / AC mode / Battery Mode / Battery Fault / Overload |
|
Audible Alarms |
Battery Mode / Battery Low /Overload |
|
ENVIRONMENTAL PARAMETERS |
|
Operating Temperature |
0°C~40°C / 32°F~104°F |
|
Storage Temperature |
-20°C~60°C / -4°F~140°F |
|
Audible Noise |
< 40 dBA |
|
PHYSICAL PARAMETERS |
|
Dimensions (LxWxH) |
Physical |
15×5.1×7.5 inches / 382×130×192 mm |
|
Weight |
Net |
15.9 kg / 35 lbs |
|
Gross |
17.3 kg / 38 lbs |
|
CONFORMANCE |
|
Safety Certifications |
UL / cUL |
