Topology |
Line-Interactive |
|
On-battery Output Waveform |
Step Wave |
|
INPUT |
|
Maximum Capacity |
1000VA / 700W |
|
Nominal Input Voltage |
110/120V(!!) |
|
Input Frequency |
50/60Hz Auto sensing |
|
AC Line-In Plug |
110/120V models |
NEMA 5-15P |
 |
|
OUTPUT |
|
Nominal Output Voltage |
110/120Vac(!!) |
|
Output Voltage Regulation |
Rated Voltage +/- 5% |
|
Transfer Time |
4 ms (typical) |
|
Overload Protection |
Circuit Breaker |
|

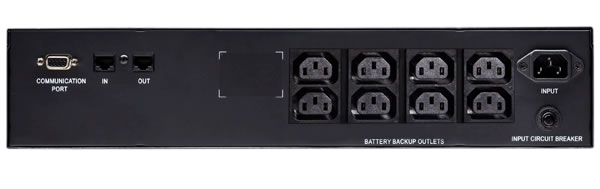

Type and Number of Outlets |
110/120V models |
NEMA 5-15R
8 x Battery Backup |
 |
|
PROTECTION |
|
Automatic Voltage Regulation (AVR) |
Yes |
|
Data Line Protection |
RJ11 / RJ45 |
|
Surge Energy Rating |
1050 Joules |
|
Normal Mode Noise Suppression |
Full time EMI/RFI filtering |
|
USER REPLACEABLE BATTERY |
|
User Replaceable Battery |
RBAT-12 |
|
Typical Back-up Time (1PC + 1 CRT)1) |
45 ~ 55 min. |
|
Full load runtime |
3 Minutes (900VA) |
|
Half load runtime |
10 Minutes (500VA) |
|
Typical Recharge Time to 90% |
<4 Hours |
|
MONITORING |
|

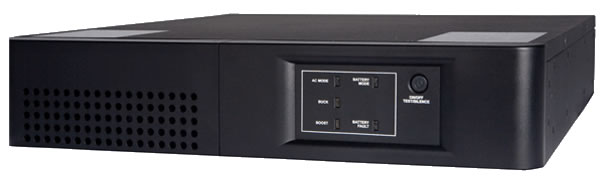

Front Panel LEDs |
AC mode, Battery mode, Battery fault, Buck Mode, Boost Mode, Overload |
|
Audible Alarms |
Battery mode, UPS fault, Overload |
|
COMMUNICATION INTERFACE |
|
Communication Port2) |
RS232 |
|
ENVIRONMENTAL PARAMETERS |
|
Operating Temperature |
0°C~40°C / 32°F~104°F |
|
Storage Temperature |
-20°C~60°C / -4°F~140°F |
|
Audible Noise |
< 40 dBA |
|
PHYSICAL PARAMETERS |
|
Dimensions (LxWxH) |
Physical |
16.8x16.9x3.3inch / 426x428x84mm |
|
Packing |
21.9x21.7x8.1 inch / 555x550x205 mm |
|
Weight |
Net |
38.2lb / 17.3 kg |
|
Gross |
44.9 lb / 20.4 kg |
