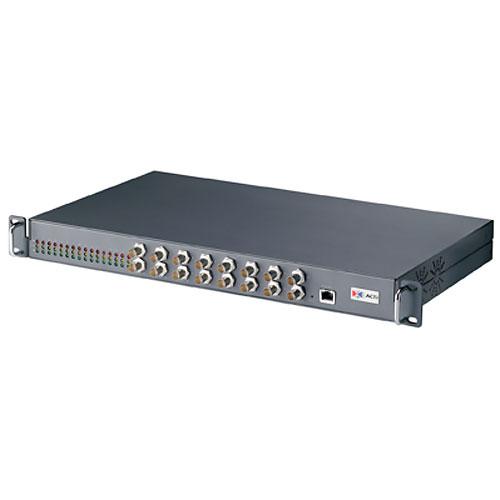

ACTi 1U Rackmount 16-channel Video Server with Two Way Audio

ACTi 1U Rackmount 16-channel Video Server with Two Way Audio


ACD-2400
$3,980.44

Product Details


  • Selectable MPEG-4/MJPEG compression
  • CIF up to Full D1 resolution at 30/25 FPS (per channel)
  • Multi-stream with variable frame rate in the same compression
  • Two way audio supported (per channel)
  • Hardware motion detection, Digital Input / Output (per channel)
  • Serial ports for each channel


Specifications


Video Compression
Compression MPEG-4 SP, MJPEG selectable
Picture Resolution Full D1 (720 x 480 in NTSC, 720 x 576 in PAL)
VGA (640 x 480 in NTSC, 640 x 480 in Pal)
CIF (352 x 240 in NTSC, 352 x 288 in PAL)
QCIF (160 x 112 in NTSC, 176 x 144 in PAL)
(per channel)
Bit Rate 28 K ~ 3 M bps (per channel)
Image Frame Rate 30fps at full D1 resolution (NTSC)
25fps at full D1 resolution (PAL)
Multi-stream Up to 2 configurable frame rate/bit rate streams for preview and recording
(per channel)
Video Input
Composite Input 16, CVBS, 1.0Vp-p with 75Ω loading, BNC connector
Video Output
Composite Output N/A
Audio Input
Compression 8kHz, Mono, PCM
Audio Line Input 16, Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Audio Output
Compression 8kHz, Mono, PCM
Audio Line Output 16, Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Alarm
Digital Input 2, TTL, Terminal Block (per channel)
Digital Output 2, TTL, Terminal Block (per channel)
Remote Control
Serial Port RS-485: Half Duplex, terminal block
RS-422: Full Duplex, terminal block
RS-232**: Full Duplex, terminal block
(per channel)
External I/O
Reset Button Factory default
LED System Status (per channel)
Network
Ethernet Port Ethernet(10/100 Base-T), RJ-45 connector
Protocol TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP, FTP, SMTP, DNS, DDNS, NTP, ICMP, IGMP, ARP
Software
Web Browser Microsoft Internet Explorer 6.0 or above
SDK ACTi SDK-10000
PTZ Protocol* Pelco-D, Pelco-P V1 and V2, Dynacolor,Sony VISCA, American Dynamics
Security Password protection: configured by the administrator
Operating
Temperature 0C ~ 50C (32F ~ 122F)
Power
Power Requirement AC 100 ~ 240V 50 / 60 Hz
Power Consumption 87 W

Physical
Dimensions (WxHxD) 444 mm x 44.5 mm x 272 mm
(17.48" x 1.75" x 10.72")

Weight

4.3 kg (9.47 lb)

Approvals

Certificate

CE, FCC

Drivers & Manuals

Accessories
ACD-2400 Quick Installation Guide
ACD-2400 Hardware Manual
ACD-2400 Data Sheet
