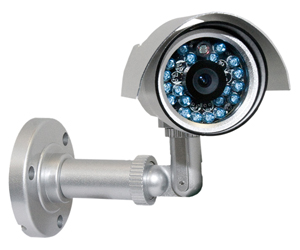

Weatherproof Color IR Camera 24 LED's

Weatherproof Color IR Camera 24 LED's
Day Night

IR Range 50 Feet

Configuration Options

Product Details
  • IP55 Weatherproof Standard
  • Water, Dust and Crush Resistant Glass Coating
  • Built-in Weatherproof audio Microphone
  • Long range IR LED Automatically Illuminates in dark
  • 1/3' SONY Sensor
  • 3.6mm fixed lens
  • 480 TV Lines
  • Tri-axis mount (top or bottom mount)
  • Includes Power Supply


This is an extremely versatile camera. It can be used in almost any applications, indoor or outdoor. It is IP55 and fully weather and crush resistant. It possesses the latest in IR (infra-red) technology, with its blue long range IRs capable of seeing in 0 lux up to 50 feet. It has a built in audio microphone, easy top or bottom mount as well as a removable sun shield. The IR150 comes with a SONY 1/3 inch high resolution sensor that provides 480 liens of resolution. It comes with a 3.6mm (optional 4mm, 8mm, 12mm) fixed lens.

Video Output Composite 1.0Vp-p at 75 Ohm
Resolution 480 TV Lines
Dimensions 3.0' L x 2.1' Radius
Net Weight 10.6 oz ~ 19.4 oz
Image Sensor 1.3' SONY Sensor CCD
Signal Format NTSC / PAL
*Note PAL only avalible as special order.
Lens 3.6mm Fixed (optional 4mm, 6mm, 8mm, 12mm)
S/N Ratio 50dB
Auto Shutter (AES) 1/60 ~ 1/20,000 sec.
Gamma Correction 0.45
White Balance Auto 3200 ~ 10000K
Sound Built-in audio microphone
Working Temperature -10C ~ +55C
Working Humidity 10% - 90%
Barometric Pressure 86kpa - 106kpa

Drivers & Manuals

Spec Sheet/Instructions

Photos & Videos

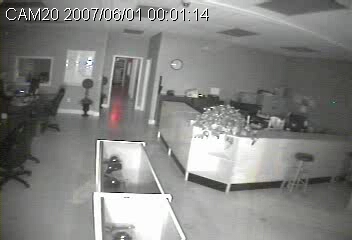

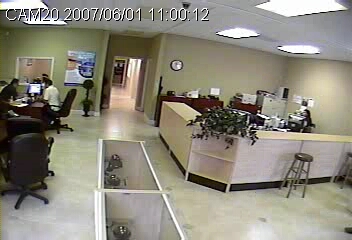

Weatherproof Color IR Camera 24 LED'sTEST150IR_NIGHT.JPGTEST150IR_DAY.JPG
