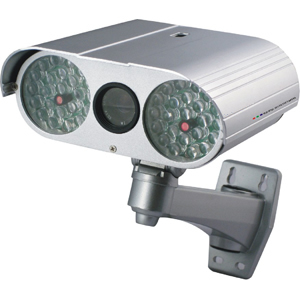

220 Foot IR Distance Waterproof IR Camera
46PCSF8 IR LED,built-in 4-9mm Auto Iris lens
Less noise point, clean image for night vision
Lamp panel separates from the camera chip to prevent fogging and light leakage
Separation of two panels to realize multipoint heat emission and lengthen led life.
Synchro control of two lamp panels to realize no dark spot for night vision and uniform brightness
Lens Sold Separately

Pick-up Device:	1/3"SONY CCD
Scanning Area:	4.9mm(H)×3.7mm(V)
Picture Element:	PAL:752(H)×582(V) NTSC:768(H)×494(V)
TV System:	PAL/NTSC
Horizontal Resolution:	540TV Lines
Minimum Illumination:	IR ON 0Lux
S/N Ratio:	More than 48dB
Auto Electronic Shutter:	PAL:1/50s-1/100,000s NTSC:1/60s-1/100,000s
Gamma Characteristic:	0.45
Auto Gain Control:	Auto
Auto White Balance:	Auto
Back Light Compensation:	Auto
Synchronous System:	Internal Synchronization
Lens Mount:Lens:	built-in 4-9mm Auto Iris lens
Video Output:	1.0Vp-p,75Ohms, BNC Connector
Infrared Lamps Irradiation Distance:	220 Feet
Protection Rate:	IP66
Power Supply:	DC 12V
Power Consumption:	150mA(IR ON MAX 780mA)
Operating Temperature:	-10~+50
Dimensions(W×D×H):	140mm x 153.5mm x 64mm
Weight(g):	704g
Material:	Aluminum alloy

1/3" Sony CCD 540 TV Lines 4~9 mm 229 Feet IR Distance
