Model Name
|
|
|
Complete Kit Includes |
Portable MPEG4 DVR + Wireless IR Camera |
|
< Product-1 > |

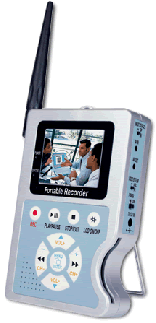

Portable MPEG4 DVR |
|
Video System |
NTSC / PAL |
|
Video Codec |
MPEG4-SP ASF File Format |
Video Recording
Frame Rate |
1-30 fps (adjustable) |
|
Video Resolution |
720x240,320x240 (NTSC)
720x288,320x288 (PAL) |
|
Video Input |
1 CH, Phone Jack |
|
Video Output |
1 CH, Phone Jack |
|
Audio Codec |
G.726 / 32 Kbps |
|
Audio Input |
1 CH, Phone Jack |
|
Audio Output |
1 CH, Phone Jack |
|
Video Quality Level |
High / Medium / Low |
|
Storage Media |
Compact Flash (CF) Card |
|
Recording Mode |
Manual / Schedule / Motion Detection |
|
Recording Detection Setting |
Detect Area / Sensitivity |
|
Event Search Function |
Easy Search Bar (Date, Time and Event Type auto display) |
|
Playback Speed |
x1 / x2 / x4 / x8 / x16 / x32 |
|
TFT LCD Panel |
2.5' |
|
Speaker |
Built-in |
|
Power Supply |
AC100~240V 50/60 Hz, DC12V / 1A or
AAx4 Batteries |
|
Dimensions (WxHxD) |
142.5x91x30 mm |
|
< Product-2 > |
Wireless IR Camera |
|
Image Device |
1/3' Color Sony Super HAD |
|
Resolution |
380 TVL |
|
Min Illumination |
0.2 Lux / F2.0 |
|
Lens |
Board Lens 3.6mm / F2.0 |
|
White Balance |
Auto |
|
Infrared Luminary |
8 pieces IR-LED |
|
Illuminate Distance |
5 M |
|
Power Supply |
AC100~240V 50/60 Hz, DC12V |
|
Power Consumption |
IR On:3.18W max., IR Off:1.44W max. |
|
Operating Temp. |
-10ºC ~ 50ºC |
|
Dimensions (WxHxL) |
72x47.5x96.6 mm |
