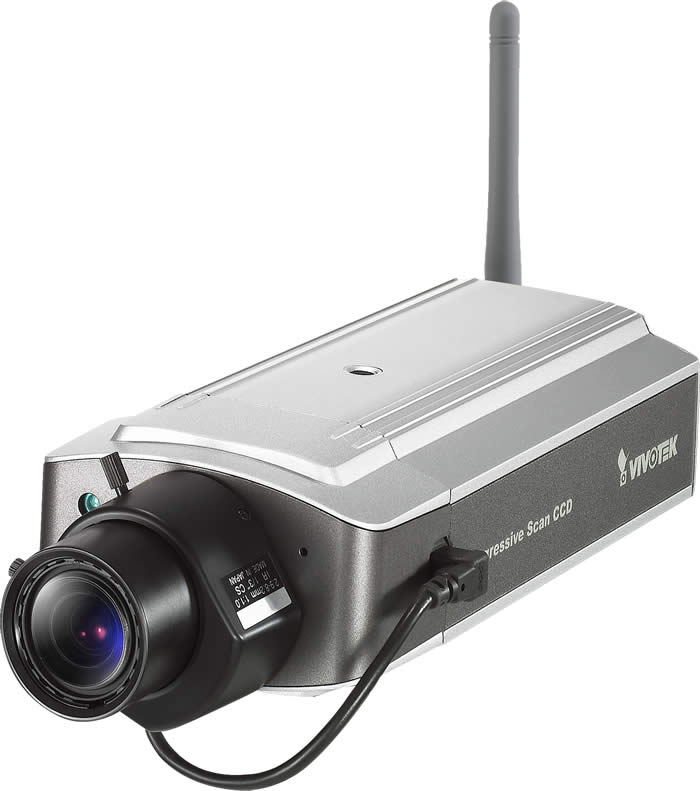

Sony Progressive Scan Day & Night 2.9~8.2mm Vari-focal Auto Iris, Wireless LAN Fixed Network Camera
Configuration
Options
IP7154
Only:
$587.81
Product Details
SONY Progressive Scan CCD Module in VGA Resolution
2.9mm~8.2mm Vari-focal, Auto-Iris Lens
Removable IR-cut Filter for Day & Night Function
Real-time MPEG-4 and MJPEG Compression (Dual Codec)
Dual Simultaneous Streams
3GPP Mobile Surveillance
Built-in 802.11b/g WLAN
Two-way Audio
Digital I/O for External Sensor and Alarm
Includes Free Standard 32-CH ST7501 Central Management Software
IP7154 Brochure
Specifications
Drivers & Manuals
Photos
Accessories
Comments
Specifications
VIVOTEK's IP7154, equipped with a progressive scan CCD sensor, deliver superior-quality, crystal-clear video for professional surveillance applications such as monitoring banks, airports, parking lots, traffic control, etc.
It can capture razor-sharp, high-resolution images of moving objects that traditional interlaced-scan techniques cannot achieve. Furthermore, working in combination with the high-performance CCD sensor is a removable IR-cut filter that can deliver high-quality images even under infrared illuminated conditions. With our self-developed VIVOTEK VVTK-1000 SoC, the camera simultaneously delivers dual streams for real-time monitoring.
The IP7154 also comes with many useful functionalities that give users flexibilities such as built-in 802.11b/g WLAN connection, multi-lingual user interface, vari-focal CS mount lens, two-way audio, and digital I/O for external sensor and alarm. The VIVOTEK IP7154 is by far the best choice for a high-performance, professional surveillance system.
System
CPU: Multimedia SoC
Lens
f=2.9 ~ 8.2 mm
F 1.0
auto iris
CS-mount
Vari-focal
Removable IR-cut filter for day & night function
Angle of View
26.7 ~ 69.0 (horizontal)
20.0 ~ 51.0 (vertical)
Shutter Time
1/30 ~ 1/15,000 sec
Image sensor
1/4" SONY progressive scan CCD in VGA Resolution
Minimum Illumination
0.2 Lux / F1.0 ( typical )
Video
Compression: MJPEG & MPEG-4
Streaming:
Simultaneous multiple streams
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports 3GPP mobile surveillance
Frame rates:
MPEG-4: Up to 30/25 fps at 640x480
MJPEG: Up to 30/25 fps at 640x480
Image Settings
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGC AWB AES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
Audio
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
Interface:
Built-in microphone
External microphone input
Audio output
Supports two-way audio
Supports audio mute
Networking
10/100 Mbps Ethernet, RJ-45
Built-in 802.11b/g WLAN
Protocols: IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
Alarm and Event Management
Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Security
Multi-level user access with password protection
IP address filtering
Wireless: WEP, WPA-PSK, WPA2
Users
10 clients on-line monitoring at the same time
Dimensions
Depth: 205.5mm
Width: 82.1mm
Height: 51.2mm
Weight
Net: 581g
LED Indicator
System power and status indicator
System activity and network link indicator
Power
12V DC
24V AC
Power consumption: Max. 4 W
Approvals
CE C-Tick FCC LVD VCCI
Operating Environments
Temperature: 0 ~ 50C (32 ~ 122F)
Humidity: 20% ~ 80%
Viewing System Requirements
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications
SDK available for application development and system integration
Warranty
24 months
Drivers & Manuals
Cameras Manuals & Drivers
IP Camera IP7154 Manual
