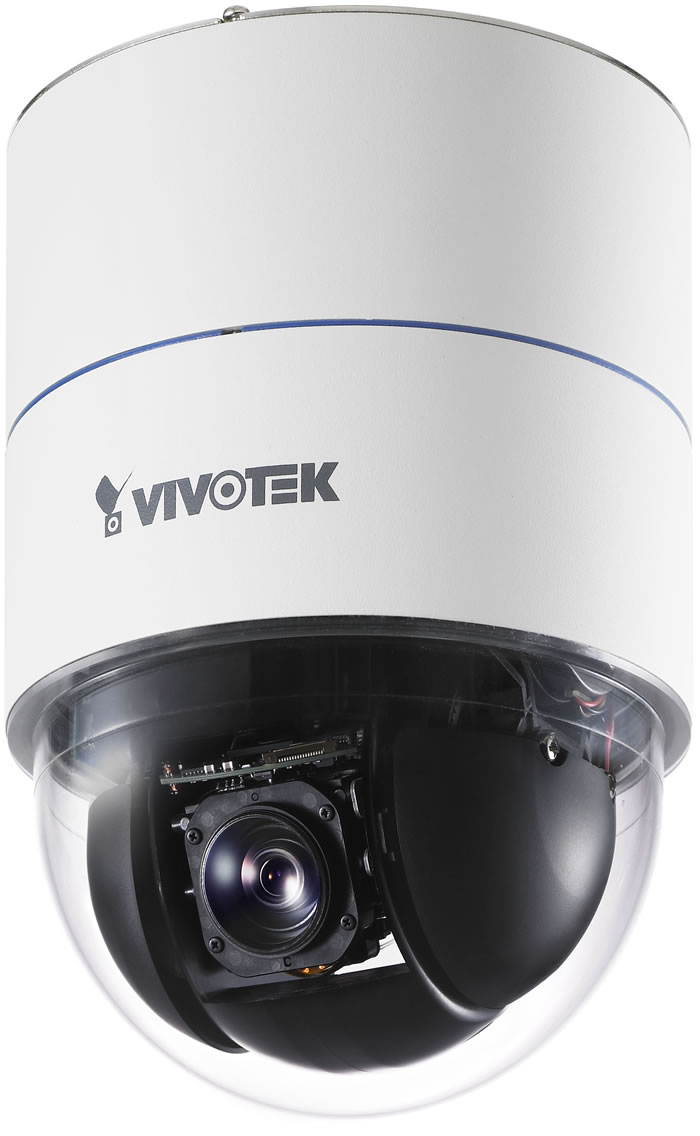

12x Zoom Day & Night 3D Noise Reduction WDR Network Camera

Configuration Options

SD8111
Only:

$1,220.89

Product Details

SONY EXview HAD CCD Sensor in D1 Resolution
12x Zoom Lens
360 Degrees Continuous Pan and 190 Degrees Tilt
Removable IR-cut Filter for Day & Night Function
Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
Multiple Simultaneous Streams
Activity Adaptive Streaming for Dynamic Frame Rate Control
3D Noise Reduction for Clear Nighttime Images
WDR (Wide Dynamic Range) for High Contrast Environments
3GPP Mobile Surveillance
Two-way Audio
Built-in SD/SDHC Card Slot for On-board Storage
Supports ONVIF Standard to Simplify Integration and Enhance Interoperability

SD8111 Brochure

Specifications
Drivers & Manuals
Photos
Accessories
Comments

Specifications

VIVOTEK SD8111/SD8121, equipped with a 12x optical zoom lens, is a high performance day/night speed dome network camera geared for professional surveillance applications, representing another significant addition to VIVOTEK's high-end H.264 network camera portfolio.

Adopting a 12x optical zoom lens and utilizing SONY's EXView CCD sensor, this network camera allows for not only close-up images with exceptional detail from a faraway distances, but also crystal-clear, razor-sharp video of fast-moving objects without jagged edges. With a sophisticated pan/tilt mechanism, it provides fast, precise movement with endless 360-degree pan and 90-degree tilt. The user can easily control the lens position via mouse or joystick to track the object of interest and set up to 128 preset positions for patrolling.

Boasting with Wide Dynamic Range technology, SD81x1 can cope with any challenging lighting conditions and generate image quality closer to the capabilities of the human eye. The day and night functionality also makes the SD81x1 ideal for operating under diverse lighting conditions. When lighting conditions turn poor, the IR-cut filter will automatically disengage to accept IR illumination and improve image quality. With the new 2D & 3D noise reduction technology, environmental noise is removed to provide crystal clear nighttime video and the camera automatically switches from color to black and white, assuring optimal image quality at all times. Additional advanced features, including 3GPP mobile surveillance, two-way audio, and digital I/O for external sensors & alarms, make the VIVOTEK SD8111/8121 a full-featured speed dome and a suitable solution for all levels of enterprise projects such as airports, parking lots, and shopping malls, where high-level reliability and precision are an absolute must.

System	CPU: Multimedia SoC
Pan/Tilt/Zoom	Pan range: 360 Degrees Tilt range: -10 Degrees ~ 190 Degrees 12x optical zoom Pan speed: 0.1 Degrees ~ 300 Degrees/sec Tilt speed: 0.1 Degrees ~ 120 Degrees/sec Auto pan mode Auto patrol mode
Lens	12x optical zoom f=3.8 ~ 45.6 mm F 1.6 (wide) F 2.8 (tele) Focus range: wide 20 mm, tele 3000 mm ~ ∞ auto iris Removable IR-cut filter for day & night function
Angle of View	1.7 Degrees ~ 55.8 Degrees (horizontal)
Shutter Time	1/2, 1/1.5(SD8121) ~ 1/30,000 sec
Image sensor	1/4" SONY EXview HAD CCD in D1 Resolution
Minimum Illumination	0.1 Lux / F1.6 ( typical ) 0.01 Lux / F1.6 ( B/W )
Video	Compression: H.264, MPEG-4 & MJPEG Streaming: Simultaneous multiple streams H.264 streaming over UDP, TCP, HTTP or HTTPS H.264/MPEG-4 multicast streaming MPEG-4 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS Supports activity adaptive streaming for dynamic frame rate control Supports 3GPP mobile surveillance Frame rates: H.264: Up to 30/25 fps at 720x480 (NTSC) /720x576 (PAL) MPEG-4: Up to 30/25 fps at 720x480 (NTSC) /720x576 (PAL) MJPEG: Up to 30/25 fps at 720x480 (NTSC) /720x576 (PAL)
Image Settings	Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure AGC AWB AES Automatic, manual or scheduled day/night mode Supports privacy masks BLC (Backlight compensation) WDR(widedynamicrange)
Audio	Compression GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law Interface: External microphone input Audio output Supports two-way audio Supports audio mute
Networking	10/100 Mbps Ethernet, RJ-45 ONVIF support Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management	Triple-window video motion detection 4 D/I & 1 D/O for external sensor and alarm Event notification using HTTP, SMTP, or FTP Local recording of MP4 files
On-board Storage	SD/SDHC card slot Stores snapshots and video clips
Security	Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission 802.1X port-based authentication for network protection
Users	10 clients on-line monitoring at the same time
Dimensions	131mm x 200 mm Cable length: 680 mm Cable diameter: 8 mm; Ring: 13.5 mm
Weight	Net: 1500 g
Power	12V DC Power consumption: Max. 11.4 W
Approvals	CE C-Tick FCC LVD VCCI
Operating Environments	Temperature: 0 ~ 40C (32 ~ 104F) Humidity: 90%
Viewing System Requirements	OS: Microsoft Windows 2000/XP/Vista/7 Browser: Mozilla Firefox, Internet Explorer 6.x or above Cell phone: 3GPP player Real Player: 10.5 or above Quick Time: 6.5 or above
Installation, Management, and Maintenance	Installation Wizard 2 32-CH central management software Supports firmware upgrade
Applications	SDK available for application development and system integration
Warranty	24 months
