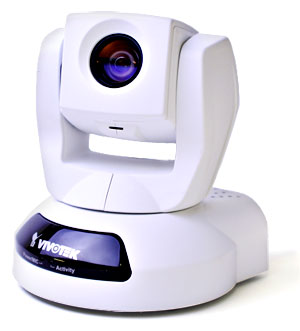

Network IP-Camera Pan, Tilt and 10X optical Zoom Mpeg4 Compression, two way audio

Network IP-Camera Pan, Tilt and 10X optical Zoom Upgrade
Configuration Options
SCW-IPPZ6112
Only:
$797.95
Accessories:
Outdoor Housing for SCW-IPPZ6112
SCW-IPHS add $398.95





Product Details
  • 1/4" color CCD image sensor
  • Employs Digital Signal Processor (DSP) IC for image control
  • High sensitivity, low smear, high anti-blooming, and high S/N ratio
  • Auto Electronic Shutter (AES)
  • Auto Gain Control (AGC)
  • White Balance (AWB)
  • Economical, built-in corn type pin hole lens
  • Furnished Mounting Bracket
  • Built-in anti-aliasing and IR-cut optional filter
  • Furnished with DC power cable and video cable
  • DC type, low power consumption
  • Optional built-in Microphone for audio function
  • 1 year parts and labor warranty


Specifications

System CPU: Trimedia PNX1300 RAM: 16MB SDRAM ROM: 2MB Flash ROM
Networking Protocol: UPNP, TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DDNS and DHCP
Connection: Ethernet LAN
Video Algorithm:
MPEG4(short header mode) for streaming video
JPEG for still image

Features:
Adjustable image size, quality and bit-rate
Time stamp and text overlay
Three configurable motion detection windows
Flip & mirror - Video output connector
Resolution: NTSC
Up to 30 frames at 176x120 - Up to 30 frames at 352x240
Up to 15 frames at 704x480
Camera Specification 1/4 inch color CCD image sensor
270K pixel (PZ6112) / 320K pixel (PZ6122)
1.5 Lux / F1.8 (Typical)
0.05 Lux / F1.8 (Low Lux mode)
AGC
AWB
AES
Electronic shutter:1/60(1/50)~1/120,000sec.
Lens 10X optical zoom lens
f=4.2~42mm
F1.8~2.9
Audio 8k / 24k / 32 kbps
Full duplex audio communication
Acoustic echo cancellation
Microphone Omni-directional
Frequency: 50 ~ 16000Hz
S/N ratio: More than 60dB
General I/O 1 sensor input max. 12VDC 50mA
1 relay output max. 24VDC 1A / 125VAC 0.5A
Pan/Tilt/Zoom Pan: range 135, 10~50 Degrees /sec
Tilt: range +90~-45, 7~25 Degrees /sec
Zoom: 1x~10x optical zoom / 2x,4x,6x,8x,10, digital zoom
Auto pan mode
Aut patrol mode
LED Indicators System power and status indicators
System activity and Network link indicators
Dimension 4.13in(L) 4.13in(W) 4.48in(H)
Weight NET. 0.87lb.
Power Consumption: near 8.4W
Input: 100-240VAC, 50/60Hz, 0.4A
Ouput: 12VDC, 1.5A
Operating Environment Temperature: 32~104F (0~40C)
Humidity: 95% RH
Operating Temp 14F to 122F (-10C to 50C)

Drivers & Manuals

Photos & Videos


Network IP-Camera Pan, Tilt and 10X optical Zoom

Accessories


  • Network IP-Camera Pan, Tilt and 10X optical Zoom
  • SCW-IPHS
  • $398.95
  • Outdoor Housing for SCW-IPPZ6112
