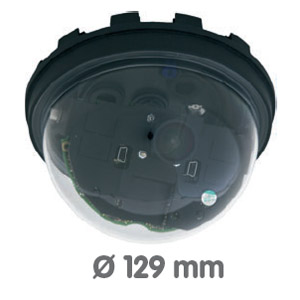

Mobotix IP Indoor Dome Camera IP54 with er Wide Angle 22mm Lens

Specifications

Sensitivity
Color: 1 lux (t=1/60 s), 0.05 lux (t=1/1 s)
B/W: 0.1 lux (t=1/60 s), 0.005 lux (t=1/1 s)
Sensor
1/2" CMOS, progressive scan
Max. image resolution
Color: 2048 x 1536 (3MEGA)
B/W: 1280 x 960 (MEGA)
Image format
2048 x 1536, 1280 x 960, 1024 x 768, 800 x 600,
768 x 576 (D1), 704 x 576 (TV-PAL), 640 x 480,
384 x 288, 352 x 288, 320 x 240, 160 x 120;
free image format selection (e.g. 1000 x 200 for skyline)
Max frame rate (M-JPEG) (Live/Recording)
VGA: 25 fps, TV-PAL: 18 fps, MEGA: 8 fps, 3MEGA: 4 fps
Video stream (MxPEG) (Live/Recording/Audio)
VGA: 30 fps, TV-PAL: 30 fps, MEGA: 30 fps, 3MEGA: 20 fps
Image compression
MxPEG, M-JPEG, JPEG, H.263 (only Video-VoIP)
Internal DVR
MicroSD slot (camera-internal video recording up to 32GB)
External storage
Directly on NAS and PC/Server without additional recording software
Software (inclusive)
Video management software MxEasy, Control room software MxControlCenter
Image processing
Backlight compensation, automatic white balance, image distortion correction, video sensor (motion detection)
Virtual PTZ
Digital Pan/Tilt/Zoom, continuous 8x zoom
Alarm/Events
Triggering of events by integrated multiple-window motion detection, external signal, temperature sensor, notification over email, FTP, IP telephony (VoIP, SIP), visual/acoustic alarm, pre- and post-alarm images
Audio
Optional via ExtIO, lip-synchronous audio, two-way speaker, audio recording, video VoIP supported
Interfaces
Ethernet 10/100, USB, MxBus
Video phone
VoIP, SIP, two-way speaker, remote control via DTMF signaling, event notification
Security
User-/Group management, HTTPS/SSL, IP address filter, IEEE 802.1x, intrusion detection, digital image signature
Certificates
EMC (EN50121-4, EN55022, EN55024, EN61000-6-2, FCC part15B, AS/NZS3548)
Power supply
Power over Ethernet (IEEE 802.3af):
PoE class variable depending on operating mode;
power consumption: typ. 3 W;
with PoE switch/MOBOTIX PoE adapter
Operating conditions
IP65 (DIN EN 60529), -30 to +60C (-22 to +140F)
Dimensions
Ø x H: 16 x 8.6 cm, Weight: ca. 350 g
Standard delivery
Housing (high-resistance composites PBT), white, shockproof polycarbonate dome (transparent), free choice of lenses, mounting parts, allen wrench, patch cable - 50 cm,manual, software, 4 GB MicroSD (except Basic)
