Device |
|
Device Type |

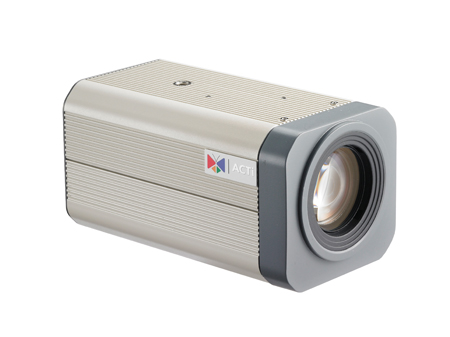

Box Camera |
|
Image Sensor |
Progressive Scan CMOS |
|
Sensor Size |
1/4" (3.84 x 2.4mm) |
|
Horizontal Resolution |
956 TV Lines |
|
Day / Night |
Yes |
|
Minimum Illumination |
Color: 0.1 lux at F1.65 (30 IRE, 2400K); B/W: 0.05 lux at F1.65 (30 IRE, 2400K) |
|
Color to B/W switch |
ISP based switch, configurable |
|
Mechanical IR Cut Filter |
Yes |
|
IR Sensitivity Range |
700 - 1100 nm |
|
IR LED |
No |
|
Electronic Shutter |
1/25 - 1/2000 sex (50Hz)
1/15 - 1/2000 sec (60Hz) (manual mode)
1 - 1/2000 sec (auto mode) |
|
Lens |
|
Zoom Ratio |
35x optical |
|
Zoom Speed |
4 sec (1x to 35x) |
|
Focal Length |
Zoom, f3.5 - 122.5mm / F1.65 - F4.5 |
|
Iris |
DC Iris |
|
Focus |
Auto Focus |
|
Horizontal Viewing Angle |
45.35 - 1.6 Degrees |
|
Video |
|
Compression |
H.264, MPEG-4 SP, MJPEG |
|
Maximum Frame Rate vs. Resolution (H.264, MJPEG) |
15 fps at 1920 X 1080 (HD 1080p)
30 fps at 1280 x 720 (HD 720p)
30 fps at 640 x 480 (VGA) |
|
Maximum Frame Rate vs. Resolution (MPEG-4 SP) |
10 fps at 1920 X 1080 (HD 1080p)
24 fps at 1280 x 720 (HD 720p)
30 fps at 640 x 480 (VGA) |
|
|
|
|
Multi-Streaming |
Simultaneous dual streams based on two configurations in single view mode
Multiple streams based on single configuration in 4 cropped VGA mode |
|
Bit Rate |
28 Kbps - 6 Mbps (per stream) |
|
Bit Rate Mode |
Constant, Variable |
|
S/N Ratio |
More than 66 dB |
|
Image Enhancement |
White balance: automatic, hold and manual; Brightness; Contrast; Automatic gain control; Digital noise reduction; Flickerless |
|
Privacy Mask |
4 configurable regions |
|
Text Overlay |
User Defined text on video |
|
Image Orientation |
Image flip and mirror |
|
Audio |
|
Compression |
8 kHz, Mono, PCM, 16 bit encoding |
|
Audio-In |
3.5mm Phone Jack |
|
Audio-Out |
3.5mm Phone Jack |
|
Network |
|
Protocol & Service |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Pelco-D |
|
Ethernet Port |
1, Ethernet (10/100 Base-T), RJ-45 connector |
|
Security |
IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control |
|
Alarm |
|
Alarm Trigger |
Video motion detection 3 regions in single view mode, 1 region each in 4 cropped VGA mode; External device through digital input |
|
Alarm Response |
Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output |
|
Interface |
|
Serial Port |
RS-485, RS-422, terminal block |
|
Digital Input |
2, terminal block |
|
Digital Output |
2, terminal block |
|
Local Storage |
MicroSD/SDHC memory card slot (card not included) |
|
General |
|
Power Source / Consumption |
PoE Class 3 (IEEE802.3af) / 6.6W DC 12V / 8.64W |
|
Weight |
680g |
|

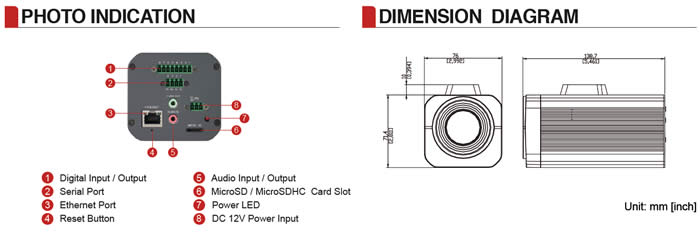

Dimensions (W x H x D) |
76mm x 71.4mm x 138.7mm |
|
Operating Temperature |
-10C ~ 50C |
|
Operating Humidity |
10% ~ 85% RH |
|
Approvals |
Camera: CE, FCC; Adapter: CE, TUV-GS, UL, RCM, CCC |
|
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
|
ISV Integration |
Software Development Kit (SDK) avalible |
|
Firmware Access Browser |
Microsoft Internet Explorer 6.0 or newer |
