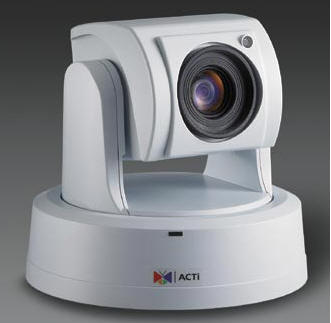

ACTi MPEG-4 NTSC Day and Night IP PTZ, two-way Audio, 480 TV Line CCD, PoE, Surface mount, 10x optical zoom

ACTi Day/Night IP PTZ Security Camera, two-way Audio, 480 TV Line CCD, PoE, Surface mount, 10x optical zoom


ACM-8511
$854.66

Product Details


  • 1/4" CCD Image Sensor
  • Day and night function
  • Optical zoom ratio 10X
  • 0.009 Lux at F1.8 (5600 K, 50 IRE, Max. AGC, Max. Sense Up)
  • Backlight Compensation, Auto Iris Control, Auto White Balance Supported
  • Selectable MPEG-4 / MJPEG compression
  • CIF up to Full D1 resolution at 30/25 FPS
  • Multi-stream with variable frame rate in the same compression
  • Two-way audio supported
  • Hardware motion detection, Digital Input/Output


Specifications

TESTING 1/4 CCD
Size 1/4 inch
Effective Pixels (HxV) 811 x 508 (NTSC)
Horizontal Resolution 480 TVL
Min. Scene Illumination
Color Color mode automatically switch to B/W mode under 2.5 Lux
B/W 0.009 Lux (IR LED ON)
Lens
Focal Length f4.2 ~ 42 mm / F1.8
Viewing Angle 56.4 ~ 6.1 (degrees) (Horizontal)
Synchronization
Sync. System Internal
Functions
Motion Detection Yes (3 windows)
Electronic Shutter AES On: 1/60~1/100,000 sec. (NTSC);
AES Off: 1/60 sec. (NTSC);
AES Off: 1/50 sec.
BLC ON/OFF (switchable)
AGC ON/OFF (switchable)
White Balance AWB
Flickerless ON/OFF (switchable)
Auto Iris Control DC Iris
S/N Ratio Better than 50 dB
Pan / Tilt 10 - 90 degrees (Pan)
10 - 70 degrees (Tilt)
Travel range:
354 degrees (Pan)
115 degrees (Tilt)
Frame rate 30 FPS @ D1 (720x480)
Audio input / output 8 kHz, Mono, PCM
Audio input / output line Unbalanced, 1.4Vp-p, 1Vrms, 3.5mm jack
Alarm 1 terminal block (digital input)
1 terminal block (Transistor output)
