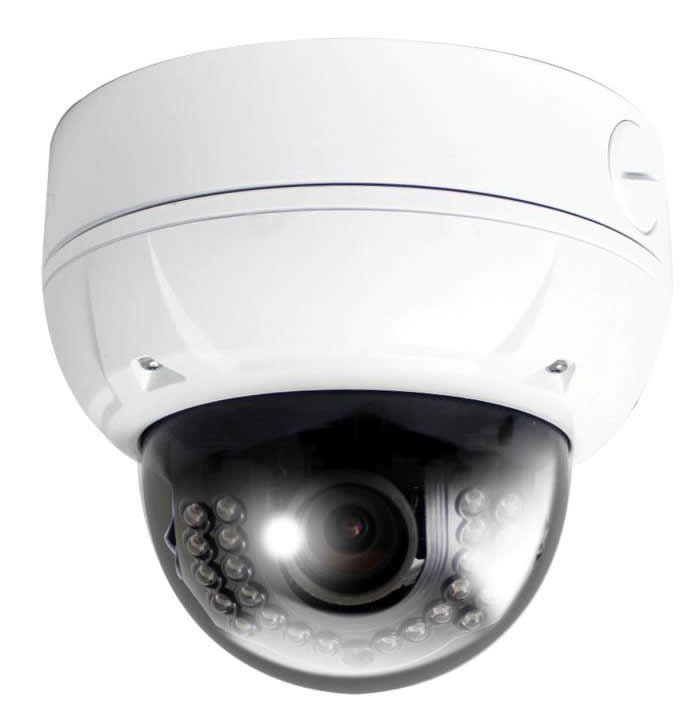

Vandal Dome Sony+Effio-E 700 TVL 2.8~12mm Lens DWDR 24 IR at 80ft 12&24V White

Vandal Dome Sony+Effio-E 700 TVL 2.8~12mm Lens DWDR 24 IR at 80ft 12&24V White

IR Range 80 Feet


Configuration Options
VDL-700-24WDRW
Only:
$229.37



Product Details
  • Sony Effio-E DSP
  • IP67(waterproof)
  • Aluminum Body and Polycarbonate dome
  • 24 IR LED units with a distance of up to 80ft
  • ATR(Adaptive Tone Reduction)
  • High resolution at 700 TVL
  • OSD


Specifications



Image Device 1/3" Sony EXview-HAD CCD II /Effio-E
Lens Varifocal lens f=2.8~10mm
Effective Pixels 976 x 494
Horizontal Resolution 700 TVL
Minimum Illumination .1 lux/f1.2 (0 lux with LED on)
IR LED 24 units up to 80ft
S/N Ratio More than 52dB
Day and Night Yes
DWDR Yes
Electronic Shutter NTSC: 1/60 to 1/100,000 sec
Housing IP67
Mirror Yes
Motion Detection Yes
OSD Yes
Gamma Characteristic 0.45
Accessories Screws, mount, terminal block, RCA cable, manual, mounting guide
Back Light Compensation yes
Power Source Dual Voltage, DC12V/AC 24V
Power Consumption Max 400ma
Operating Temperature -10C - +50C
Dimensions 5.9" x 3.8"(H)
Weight 1.8lbs
Warranty 2 Year Warranty



Drivers & Manuals

Photos & Videos

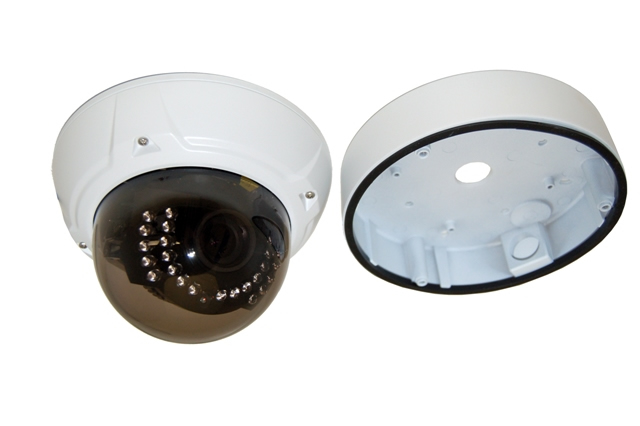

Vandal Dome Sony+Effio-E 700 TVL 2.8~12mm Lens DWDR 24 IR at 80ft 12&24V WhiteTESTVD-700-24WDR-details.jpg
